P35GK, 1-6 | AMS

Panel measuring device, moving coil meter, 100 µA, AMS P35GK, 1-6

Order No.: 16K210
EAN: 4099891453572
MPN:
P35GK, 1-6
Sk 3307
Series: P 35 GK

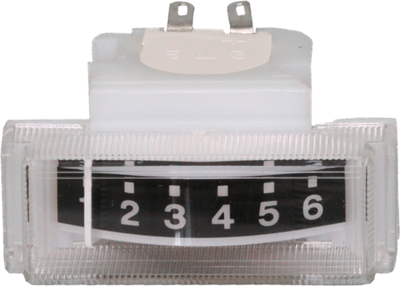

P35GK, 1-6 AMS Current Meter Image 1
P35GK, 1-6 AMS Current Meter Image 2
Image may differ
Unit Price (€ / pc.)
16.6005 € *
Available: 2 pcs.
Next delivery: 8 pcs. on 2025-11-06
Total Price:
16.60 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
16.6005 €

Display instrument P 35 GK

Moving-coil mechanism, miniature version

Measuring range: 0 to 100 µA ±20 % (internal resistance 1750 ohm)

Scale numbering: 1 to 6

Scale background: black

Scaling and numbering: white, transparent

Connection: solder lugs.

A corresponding illumination set with a 12 V/30 mA glass socket lamp is available.

Technical specifications
Filter Property Value
AC or DC measurement possible DC
Height 14 mm
Assembly front panel mounting
Min. current 0 A
Width 35 mm
Connection solder lug
Max. current 100 A
Product type panel measuring device
Version moving coil meter
Logistics
Property Value
Customs tariff number 90303370
Country of origin TN
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
