T 3637 001 | Amphenol
Panel plug, 12 pole, solder cup, screw locking, straight, T 3637 001
Unit Price (€ / pc.)
14.1848 € *
Available: 0 pcs.
Leadtime: On Request **

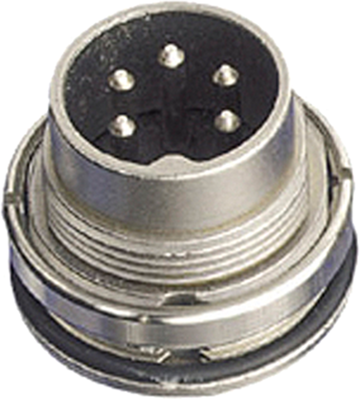

Circular connector with screw lock, type Amphenol C 091 A.
With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 3,0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 40. Operating temperatures: - 40 to +100 °C. Certification: UL.
Male receptacles, with ring nut fastener, type C 091 A.
Front mounting with screw lock.
Technical attributes (type, number of poles, rated voltage, insertion/removal force): T 3637 001, 12-pole, 150 V AC/DC, 50 N
Technical specifications
| Type of locking | screw locking | |
| contact surface | silver-plated | |
| Assembly | panel mounting | |
| Contact connection | solder cup | |
| Cable cross-section | 0.14-1.5 mm² | |
| Pin number | 12 pole | |
| Version | DIN panel plug | |
| Additional parts | equipped | |
| Shell Material | zinc die casting | |
| Orientation | straight |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
