C091 31N105 100 2 | Amphenol
Panel socket, 5 pole, solder cup, screw locking, straight, C091 31N105 100 2
Unit Price (€ / pc.)
8.3419 € *
Standard delivery time from the manufacturer is: On Request
Circular connector with screw lock, type Amphenol C 091 D.
With screw lock to IEC 60130-9, through-terminated shielding in mated and locked state (EMC safety); Current rating: 5.0 A. Housing material: zinc die cast, nickel-plated. Contact carrier material: thermoplastic. Contact finish material: silver-plated. Seal material: Neoprene. Connections: soldering, crimping. Locking torque: 0.5 to 0.7 N/m. Degree of protection: IP 67/65. Operating temperatures: –40 to +100 °C. Certification: UL.
Female panel mount connectors, with ring nut fastener, type C 091 D.

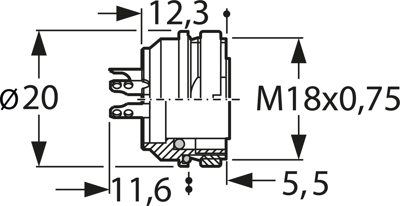

Front mounting with screw lock.

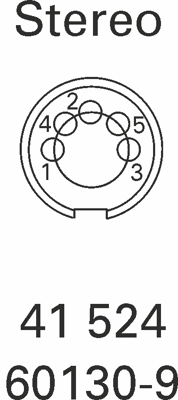

Technical attributes (type, number of poles, rated voltage, insertion/removal force): C 091 31N105 100 2, 5-pole, stereo, 100 V AC/DC, 35 N
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Additional parts | equipped | |
| Type of locking | screw locking | |
| Pin number | 5 pole | |
| contact surface | silver-plated | |
| Cable cross-section | 0.5 mm² | |
| Shell Material | zinc die casting | |
| Contact connection | solder cup | |
| Assembly | panel mounting | |
| Version | DIN panel socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
