C016 30K006 100 12 | Amphenol

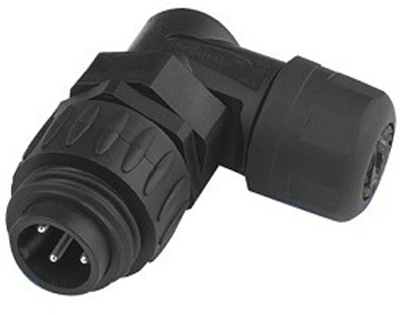

Plug, 6 pole, solder cup, screw locking, angled, C016 30K006 100 12
Circular connector, type Amphenol eco mate.
For industrial applications, plastic housing, screw locking; Rated voltage: 250 V. Current rating (at +55 °C): 13 A. Contact resistance max. 5.0 mohm. Contact finish: silver-plated. Degree of protection: IP65/IP67 in mated state. Degree of soiling: 3. Insertion/removal force: max. 30 N. Useful life: min. 500 insertion/removal cycles. Overvoltage category: III. Insulation group: II. Conductor cross-section: max. 0.75 mm². Color: black. Inflammability: UL 94 V-0. Operating temperatures: - 40 bis +125 °C.
Cable plugs, angled, type eco mate.
Strain relief by means of cage cable clamp for cable diameters from 6.0 to 12.5 mm. Crimp contacts are available on separate order.

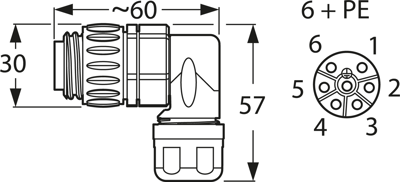

Technical attributes (type, number of poles, connection type): C016 30K006 100 12, 6 + PE, solder terminals
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Shell Material | PA | |
| Cable cross-section | 0.75 mm² | |
| Version | plug | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Cable diameter | 6 to 12.5 mm | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Contact connection | solder cup |
| Property | Value |
|---|---|
| Country of origin | CZ |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
