C016 30G006 100 12 | Amphenol

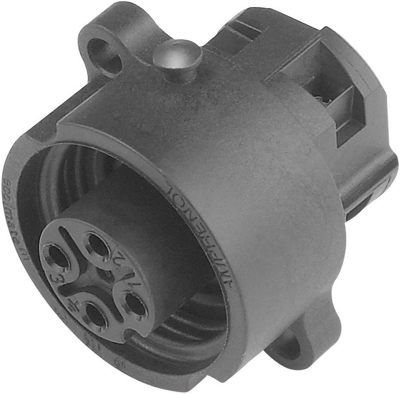

Panel socket, 6 pole, solder cup, screw locking, straight, C016 30G006 100 12
Unit Price (€ / pc.)
8.7465 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
8.75 € *
Price list
Quantity
Price per unit*
1 pcs.
8.7465 €
10 pcs.
8.1396 €
50 pcs.
7.4851 €
100 pcs.
6.8187 €
*incl. VAT plus shipping costs
Subject to prior sale
Circular connector, type Amphenol eco mate.
For industrial applications, plastic housing, screw locking; Rated voltage: 250 V. Current rating (at +55 °C): 13 A. Contact resistance max. 5.0 mohm. Contact finish: silver-plated. Degree of protection: IP65/IP67 in mated state. Degree of soiling: 3. Insertion/removal force: max. 30 N. Useful life: min. 500 insertion/removal cycles. Overvoltage category: III. Insulation group: II. Conductor cross-section: max. 0.75 mm². Color: black. Inflammability: UL 94 V-0. Operating temperatures: - 40 bis +125 °C.
Female appliance connectors, type eco mate.

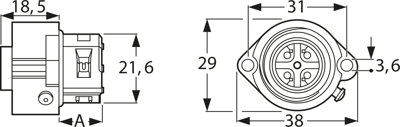

Dimension A: 14,2 mm.
Technical attributes (type, number of poles, connection type): C016 30G006 100 12, 6 + PE, solder terminals
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Type of locking | screw locking | |
| Pin number | 6 pole | |
| contact surface | silver-plated | |
| Cable cross-section | 0.75 mm² | |
| Shell Material | PA | |
| Contact connection | solder cup | |
| Assembly | panel mounting | |
| Version | flange socket |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
