C016 30D006 110 12 | Amphenol

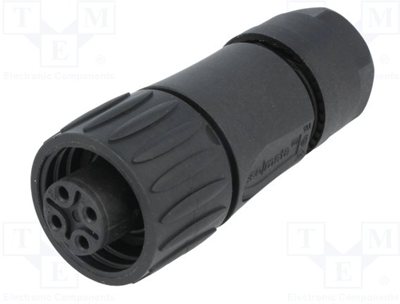

Jack, 6 pole, solder cup, screw locking, straight, C016 30D006 110 12
Circular connector, type Amphenol eco mate.
For industrial applications, plastic housing, screw locking; Rated voltage: 250 V. Current rating (at +55 °C): 13 A. Contact resistance max. 5.0 mohm. Contact finish: silver-plated. Degree of protection: IP65/IP67 in mated state. Degree of soiling: 3. Insertion/removal force: max. 30 N. Useful life: min. 500 insertion/removal cycles. Overvoltage category: III. Insulation group: II. Conductor cross-section: max. 0.75 mm². Color: black. Inflammability: UL 94 V-0. Operating temperatures: - 40 bis +125 °C.
Female cable plug, type eco mate.
Strain relief by means of cage cable clamp for cable diameters from 6.0 to 10 mm. Crimp contacts are available on separate order.
Technical attributes (type, number of poles, connection type): C016 30D006 110 12, 6 + PE, solder terminals
| Filter | Property | Value |
|---|---|---|
| Pin number | 6 pole | |
| Shell Material | PA | |
| Cable cross-section | 0.75 mm² | |
| Version | jack | |
| Assembly | cable assembly | |
| contact surface | silver-plated | |
| Cable diameter | 6 to 10 mm | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Contact connection | solder cup |
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CZ |
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
