C016 10H006 010 12 | Amphenol

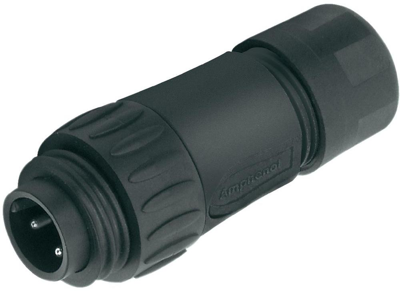

Plug, 6 pole, crimp connection, screw locking, straight, C016 10H006 010 12
Circular connector, type Amphenol eco mate.
For industrial applications, plastic housing, screw locking; Rated voltage: 250 V. Current rating (at +55 °C): 12 A. Contact resistance max. 5.0 mohm. Contact finish: silver-plated. Degree of protection: IP65/IP67 in mated state. Degree of soiling: 3. Insertion/removal force: max. 30 N. Useful life: min. 500 insertion/removal cycles. Overvoltage category: III. Insulation group: II. Conductor cross-section: 0,14 bis 1,5 mm². Color: black. Inflammability: UL 94 V-0. Operating temperatures: - 40 bis +125 °C.
Cable plugs, type eco mate.
Strain relief by means of cage cable clamp for cable diameters from 6.0 to 10 mm. Crimp contacts are available on separate order.

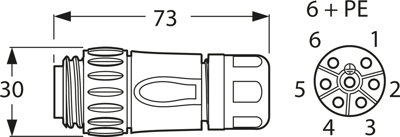

Technical attributes (type, number of poles, connection type): C016 10H006 010 12, 6 + PE, crimp terminals
| Filter | Property | Value |
|---|---|---|
| Orientation | straight | |
| Cable diameter | 6 to 10 mm | |
| Type of locking | screw locking | |
| Pin number | 6 pole | |
| Cable cross-section | 0.14-1.5 mm² | |
| Shell Material | PA | |
| Contact connection | crimp connection | |
| Assembly | cable assembly | |
| Version | plug |
| Property | Value |
|---|---|
| Country of origin | CZ |
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
