AHDP02-24-33SN-WTA | Amphenol
Socket housing, 33 pole, crimp connection, bayonet locking, straight, AHDP02-24-33SN-WTA
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
10.0436 € *
Standard delivery time from the manufacturer is: 1 Week

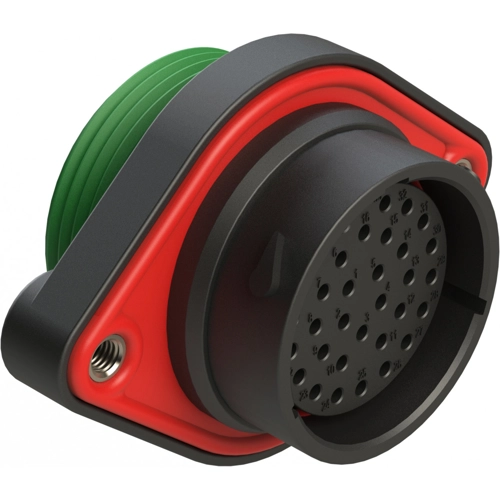

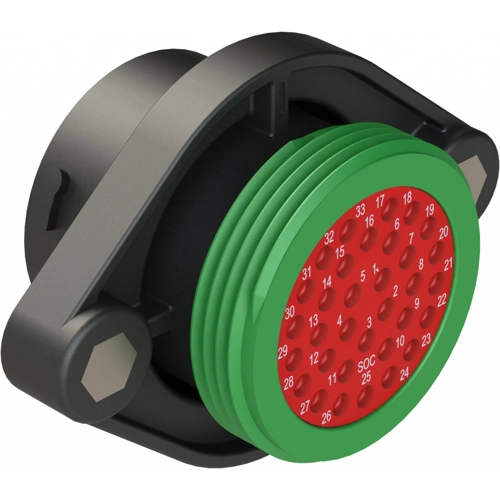

Panel Mount Receptacle, AHDP02-24-33SN-WTA, Amphenol
33 Positions Panel Mount Receptacle, Shell Size 24, Socket, Plastic, Normal Diameter Rear Seal, Wide Thread Adapter WTA (Green).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Cable cross-section | 0.35-1.5 mm² | |
| Pin number | 33 pole | |
| Orientation | straight | |
| Contact connection | crimp connection | |
| Type of locking | bayonet locking | |
| Assembly | panel mounting | |
| Additional parts | equipped | |
| Shell Material | thermoplastic |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
