97-24-28S(431) | Amphenol

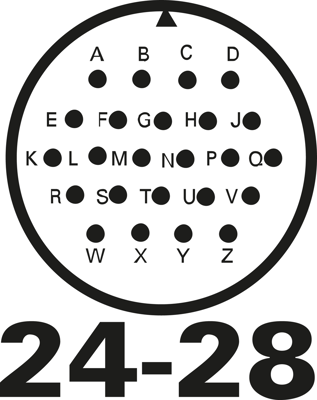

Socket contact insert, 24 pole, solder cup, straight, 97-24-28S(431)
Unit Price (€ / pc.)
43.435 € *
Standard delivery time from the manufacturer is: 12 Weeks
Socket contact insert, 97-24-28S(431), Amphenol
The 97-24-28S(431) is a widely used connector for the automotive, robotics, machine tool and welding industries as well as numerous other commercial applications from heavy equipment to ECG monitoring cables. This product is fabricated from high grade aluminum alloy to provide strength and environmental protection.
Features
- Low cost, general duty non-environmental
- Wide selection of shell styles and insert patterns
- Wide selection of connector finishes - cadmium or non-cadmium
- Threaded coupling, hard dielectric inserts
- Crimp termination
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| Pin number | 24 pole | |
| Additional parts | equipped | |
| Orientation | straight | |
| Cable cross-section | 0.5-1.5 mm² | |
| Version | socket contact insert |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | MX |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
