97-18-1S(431) | Amphenol
Socket contact insert, 10 pole, solder cup, straight, 97-18-1S(431)
Unit Price (€ / pc.)
12.8044 € *
Available: 22 pcs.
Total Price:
12.80 € *
Price list
Quantity
Price per unit*
1 pcs.
12.8044 €
10 pcs.
11.2574 €
*incl. VAT plus shipping costs
Subject to prior sale

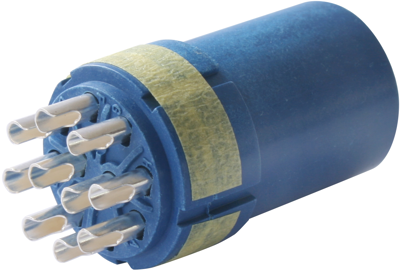

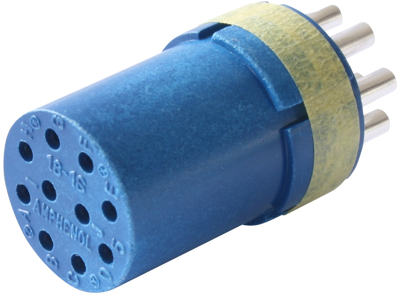

Socket contact insert, 97-18-1S(431), Amphenol
The 97-18-1S(431) is a widely used connector for the automotive, robotics, machine tool and welding industries as well as numerous other commercial applications from heavy equipment to ECG monitoring cables. This product is fabricated from high grade aluminum alloy to provide strength and environmental protection.
Features
- Low cost, general duty non-environmental
- Wide selection of shell styles and insert patterns
- Wide selection of connector finishes - cadmium or non-cadmium
- Threaded coupling, hard dielectric inserts
- Crimp termination
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| Orientation | straight | |
| Version | socket contact insert | |

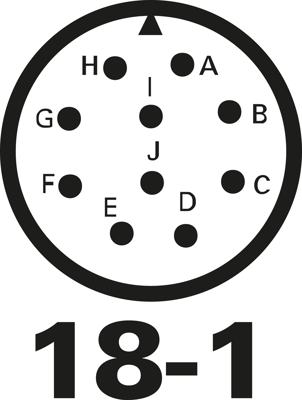

| Pin number | 10 pole | |
| Cable cross-section | 0.5-1.5 mm² | |
| Additional parts | equipped |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
