5787834-2 | AMP

USB-B socket, 4 pole, USB 2.0, solder connection, 5787834-2

Order No.: 37P2447
EAN: 4099889814637
MPN:
5787834-2

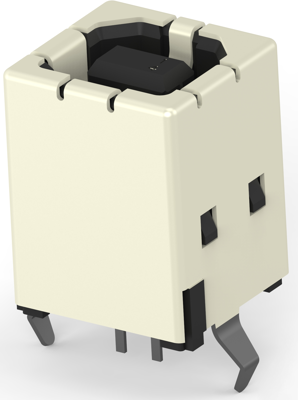

5787834-2 AMP USB Connectors, PC Connectors Image 1

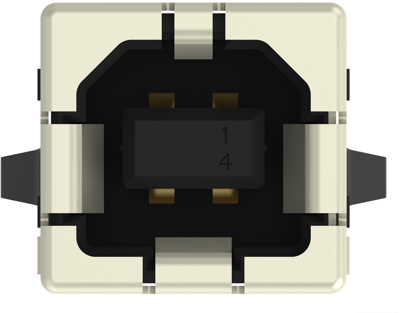

5787834-2 AMP USB Connectors, PC Connectors Image 2

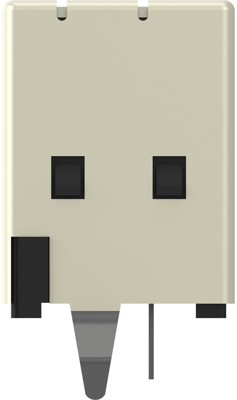

5787834-2 AMP USB Connectors, PC Connectors Image 3

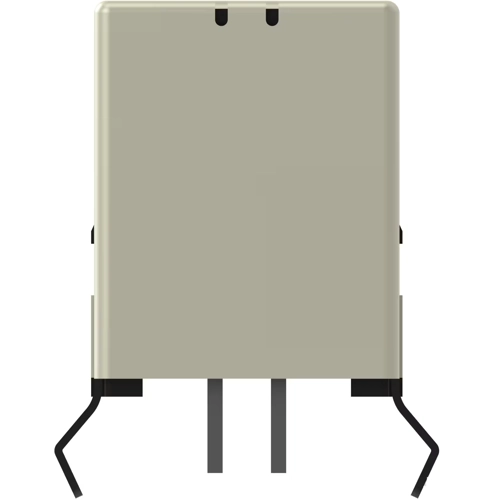

5787834-2 AMP USB Connectors, PC Connectors Image 4

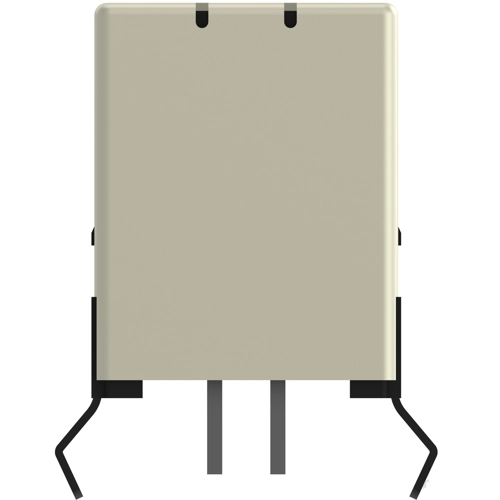

5787834-2 AMP USB Connectors, PC Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.3439 € *
Available in 5 Days: 1,841 pcs. - if ordered today
Total Price:
3.34 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3439 €
10 pcs.
3.1059 €
25 pcs.
2.8917 €
50 pcs.
2.6299 €
*incl. VAT plus shipping costs
Subject to prior sale

USB Connectors, 5787834-2, AMP

Integral Locking Latch: Without, USB Connector Type: B, USB Version: 2.0, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Number of Ports: 1, Number of Positions: 4, Shell Plating Finish: Bright, Connector Profile: Standard, Shell Plating Material: Tin, Contact Current Rating (Max): 1 A, Contact Mating Area Plating Thickness: .76 µm, Termination Method to Printed Circuit Board: Through Hole - Solder, Locating Posts: Without, PCB Mount Location: Top, PCB Connector Seating: Flush, PCB Mount Retention Type: Kinked Legs, Connector Mounting Type: Board Mount, Body Orientation: Vertical, Centerline (Pitch): 2.5 mm, Housing Color: Natural, PCB Thickness (Recommended): 1.57 mm, Soldering Temperature (Max): 260 °C, Mating Cycles (Max): 1500, Operating Temperature Range: -55 – 85 °C, Halogen Free: No, Circuit Application: Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Box & Tray,Tray, Packaging Quantity: 1008

Technical specifications
Filter Property Value
Assembly PCB mounting
Pin number 4 pole
Version B socket
Contact connection solder connection
Attachment (rear panel) through hole
USB Standard USB 2.0
Logistics
Property Value
Country of origin US
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
