1734753-1 | AMP

USB-Mini-B socket, 5 pole, USB 2.0, solder connection, 1734753-1

Order No.: 37P2391
EAN: 4099889814330
MPN:
1734753-1

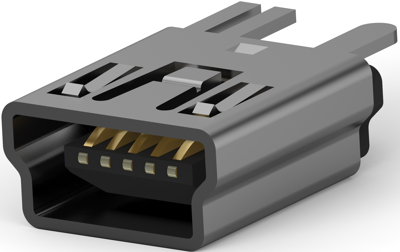

1734753-1 AMP USB Connectors, PC Connectors Image 1

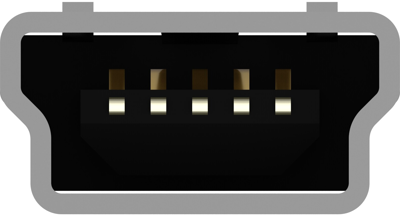

1734753-1 AMP USB Connectors, PC Connectors Image 2

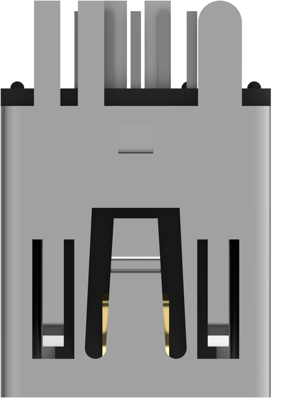

1734753-1 AMP USB Connectors, PC Connectors Image 3

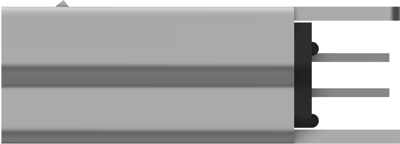

1734753-1 AMP USB Connectors, PC Connectors Image 4

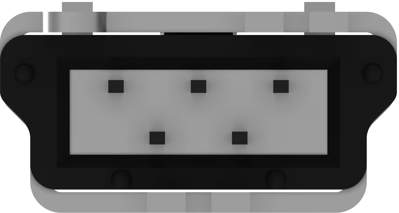

1734753-1 AMP USB Connectors, PC Connectors Image 5
Image may differ
Unit Price (€ / pc.)
1.6898 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
8.45 € *
Price list
Quantity
Price per unit*
5 pcs.
1.6898 €
10 pcs.
1.5589 €
25 pcs.
1.4518 €
50 pcs.
1.3209 €
*incl. VAT plus shipping costs
Subject to prior sale

USB Connector, 1734753-1, AMP

Integral Locking Latch: Without, USB Connector Type: B, USB Version: 2.0, Connector & Housing Type: Receptacle, Connector System: Cable-to-Board, Number of Ports: 1, Number of Positions: 5, Shell Plating Finish: Bright, Connector Profile: Mini, Shell Plating Material: Tin over Nickel, Contact Current Rating (Max): 1 A, Contact Mating Area Plating Thickness: 0.76 µm, Termination Method to Printed Circuit Board: Through Hole - Solder, Locating Posts: Without, PCB Mount Location: Top, PCB Connector Seating: Flush, PCB Mount Retention Type: Straight Leg, Connector Mounting Type: Board Mount, Body Orientation: Vertical, Centerline (Pitch): 0.8 mm, Housing Color: Black, PCB Thickness (Recommended): 1.6 mm, Soldering Temperature (Max): 240 °C, Mating Cycles (Max): 5000, Operating Temperature Range: -20 – 60 °C, Halogen Free: No, Circuit Application: Power & Signal, UL Flammability Rating: UL 94V-0, Packaging Method: Tray, Packaging Quantity: 150

Technical specifications
Filter Property Value
USB Standard USB 2.0
Version mini B socket
Contact connection solder connection
Pin number 5 pole
Assembly PCB mounting
Logistics
Property Value
Country of origin TH
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
