142270-1 | AMP
Jumper, pitch 2.54 mm, 3 A, gold-plated, green, 142270-1
Order No.: 40F423
EAN: 4099889686647
MPN:
142270-1
0-0142270-1
Unit Price (€ / pc.)
0.8330 € *
Available: 1,415 pcs.
Next delivery: 2,900 pcs. on 2025-09-25
Total Price:
4.17 € *
Price list
Quantity
Price per unit*
5 pcs.
0.8330 €
10 pcs.
0.7735 €
25 pcs.
0.7140 €
50 pcs.
0.6545 €
*incl. VAT plus shipping costs
Subject to prior sale

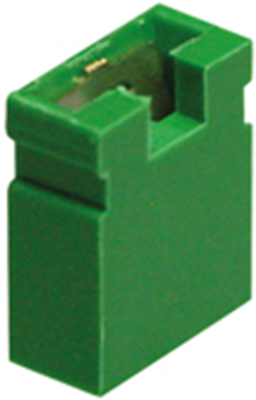

Short-circuit jumper, 142270-1, AMP
With sockets for square terminal posts 0.64 x 0.64 mm or round terminal posts with a diameter of 0.64 mm; Grid: 2.54 mm. With test probe slot in the upper housing part. Contacts: copper beryllium. Housing: polyester to UL 94 V-0. Operating temperatures: -55 to +125 °C. Rated current: 3.0 A.
Type: 0-0142270-1, gold-plated.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Grid | 2.54 mm | |
| contact surface | gold-plated | |
| Rated current | 3 A | |
| Colour | green |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
