T4171310004-001 | AMP

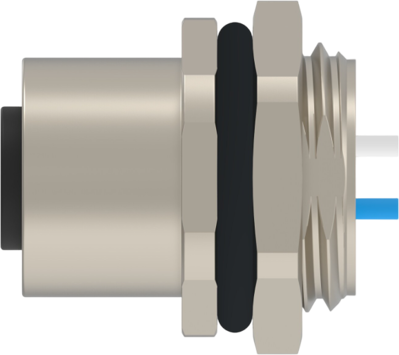

Panel socket, M12, 4 pole, strand connection, screw locking, straight, T4171310004-001
Order No.: 59F663
MPN:
T4171310004-001
Unit Price (€ / pc.)
14.6846 € *
Available in 5 Days: 34 pcs. - if ordered today
Total Price:
14.68 € *
Price list
Quantity
Price per unit*
1 pcs.
14.6846 €
10 pcs.
13.6612 €
25 pcs.
12.5664 €
50 pcs.
11.4359 €
*incl. VAT plus shipping costs
Subject to prior sale
Sensor actuator cable, T4171310004-001, AMP
4 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, A Code, M12 Connector.
Technical specifications
| Product type | panel socket | |
| Version | cable 0.2 m | |
| Pin number | 4 pole | |
| Thread size | M12 | |
| Coding | A | |
| Type of locking | screw locking | |
| Orientation | straight | |
| Contact connection | strand connection | |
| contact surface | gold-plated | |
| Additional parts | equipped | |
| Assembly | panel mounting | |
| Degree of protection (IP) | IP67 |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
