T4145015081-002 | AMP

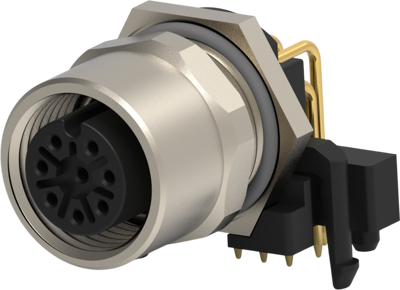

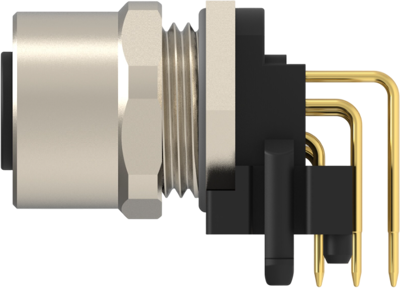

Panel socket, M12, 8 pole, solder connection, screw locking, angled, T4145015081-002
Order No.: 59F646
MPN:
T4145015081-002
Unit Price (€ / pc.)
25.2875 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
25.29 € *
Price list
Quantity
Price per unit*
1 pcs.
25.2875 €
5 pcs.
23.9904 €
10 pcs.
22.4315 €
25 pcs.
20.4561 €
*incl. VAT plus shipping costs
Subject to prior sale
Built-in socket, T4145015081-002, AMP
8 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, A Code, M12 Connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Assembly | panel mounting | |
| Coding | A | |
| Thread size | M12 | |
| Orientation | angled | |
| Type of locking | screw locking | |
| Product type | panel socket | |
| contact surface | gold-plated | |
| Contact connection | solder connection | |
| Pin number | 8 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
