T4131512041-000 | AMP
Panel socket, M12, 4 pole, solder connection, screw locking, straight, T4131512041-000
Order No.: 59F686
MPN:
T4131512041-000
Unit Price (€ / pc.)
9.5200 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
9.52 € *
Price list
Quantity
Price per unit*
1 pcs.
9.5200 €
10 pcs.
8.8417 €
25 pcs.
8.2467 €
50 pcs.
7.4970 €
*incl. VAT plus shipping costs
Subject to prior sale

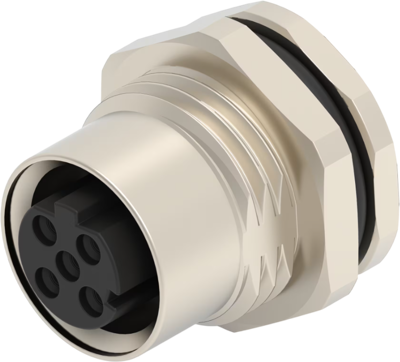

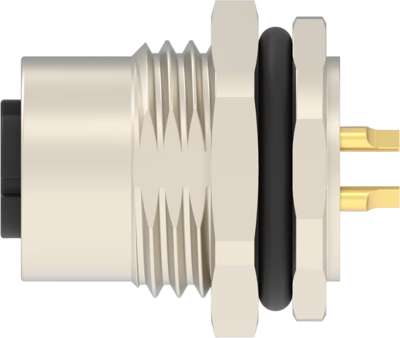

Built-in socket, T4131512041-000, AMP
4 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, D Code, M12 Connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Assembly | panel mounting | |
| Coding | D | |
| Thread size | M12 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Product type | panel socket | |
| contact surface | gold-plated | |
| Contact connection | solder connection | |
| Pin number | 4 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
