T4130512041-000 | AMP

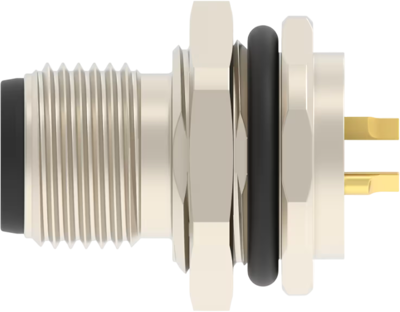

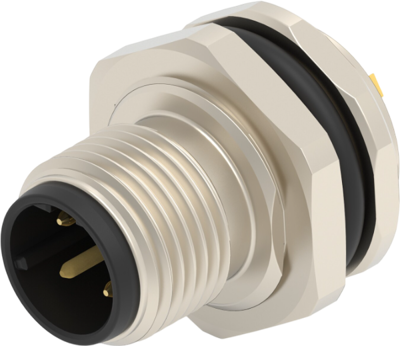

Panel plug, M12, 4 pole, solder connection, screw locking, straight, T4130512041-000
Order No.: 59F697
MPN:
T4130512041-000
Unit Price (€ / pc.)
9.9603 € *
Available in 5 Days: 48 pcs. - if ordered today
Total Price:
9.96 € *
Price list
Quantity
Price per unit*
1 pcs.
9.9603 €
10 pcs.
9.2463 €
25 pcs.
8.6275 €
50 pcs.
7.8421 €
*incl. VAT plus shipping costs
Subject to prior sale
Built-in plug, T4130512041-000, AMP
4 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, D Code, M12 Connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coding | D | |
| Product type | panel plug | |
| Contact connection | solder connection | |
| Degree of protection (IP) | IP67 | |
| Orientation | straight | |
| contact surface | gold-plated | |
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Thread size | M12 | |
| Assembly | panel mounting |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
