T4113502041-000 | AMP

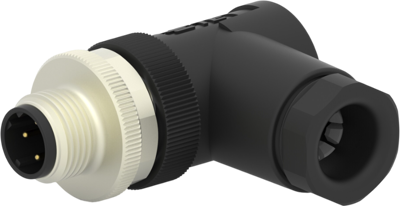

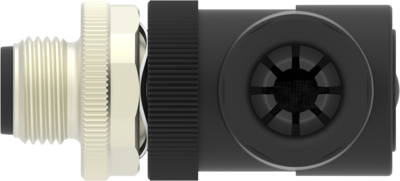

Angle plug, M12, 4 pole, screw connection, screw locking, angled, T4113502041-000
Order No.: 59F669
MPN:
T4113502041-000
Unit Price (€ / pc.)
8.0682 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
8.07 € *
Price list
Quantity
Price per unit*
1 pcs.
8.0682 €
10 pcs.
7.5089 €
50 pcs.
6.9020 €
100 pcs.
6.2832 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, T4113502041-000, AMP
4 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Unplated, M12 Connector.
Technical specifications
| Pin number | 4 pole | |
| Type of locking | screw locking | |
| Contact connection | screw connection | |
| Product type | plug | |
| Coding | D | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
