T4113012081-000 | AMP

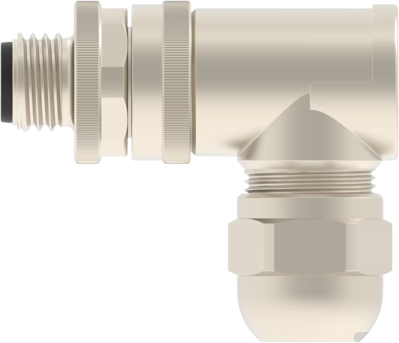

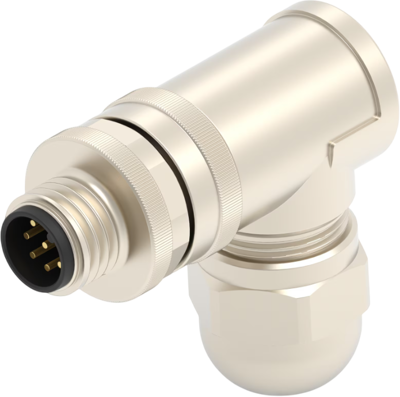

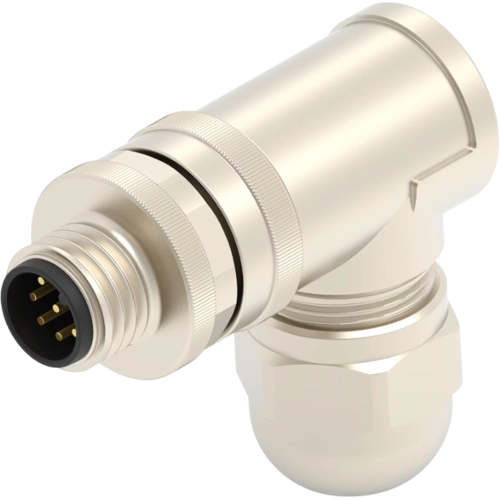

Angle plug, M12, 8 pole, screw connection, screw locking, angled, T4113012081-000
Order No.: 59F641
MPN:
T4113012081-000
Unit Price (€ / pc.)
23.6215 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
23.62 € *
Price list
Quantity
Price per unit*
1 pcs.
23.6215 €
10 pcs.
21.9674 €
25 pcs.
20.2062 €
50 pcs.
18.3855 €
*incl. VAT plus shipping costs
Subject to prior sale
Male connector, T4113012081-000, AMP
8 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Nickel, M12 Connector.
Technical specifications
| Pin number | 8 pole | |
| Type of locking | screw locking | |
| Contact connection | screw connection | |
| Product type | plug | |
| Coding | A | |
| Assembly | cable assembly | |
| Orientation | angled | |
| Degree of protection (IP) | IP67 | |
| Thread size | M12 | |
| contact surface | gold-plated |
Download
Logistics
| Customs tariff number | 85366990 |
| Country of origin | CN |
Compliance
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
