T4111502051-000 | AMP

Plug, M12, 5 pole, screw connection, screw locking, straight, T4111502051-000

Order No.: 59F677
MPN:
T4111502051-000
T4111502051-000 AMP Sensor-Actuator Connectors Image 1
T4111502051-000 AMP Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
9.1392 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
9.14 € *
Price list
Quantity
Price per unit*
1 pcs.
9.1392 €
10 pcs.
8.4966 €
50 pcs.
7.8183 €
100 pcs.
7.1162 €
*incl. VAT plus shipping costs
Subject to prior sale

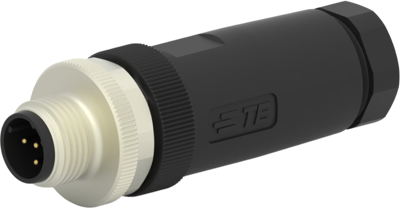

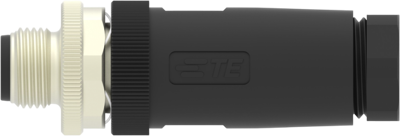

Male connector, T4111502051-000, AMP

5 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Unplated, M12 Connector.

Technical specifications
Pin number 5 pole
Type of locking screw locking
Contact connection screw connection
Product type plug
Coding D
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin CN
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
