T4110512051-000 | AMP

Jack, M12, 5 pole, screw connection, screw locking, straight, T4110512051-000

Order No.: 59F637
MPN:
T4110512051-000

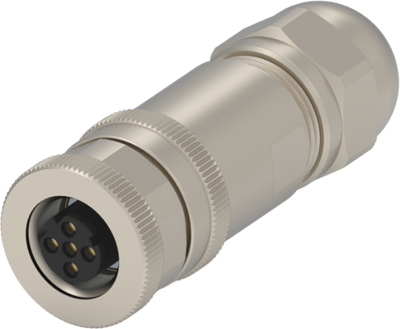

T4110512051-000 AMP Sensor-Actuator Connectors Image 1

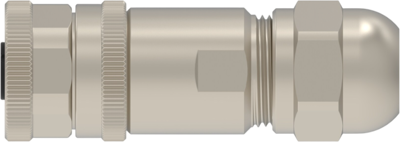

T4110512051-000 AMP Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
12.9472 € *
Available in 5 Days: 424 pcs. - if ordered today
Total Price:
12.95 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9472 €
10 pcs.
12.0428 €
50 pcs.
11.0789 €
100 pcs.
10.0793 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, T4110512051-000, AMP

5 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Nickel, M12 Connector.

Technical specifications
Pin number 5 pole
Type of locking screw locking
Contact connection screw connection
Product type socket
Coding D
Assembly cable assembly
Orientation straight
Degree of protection (IP) IP67
Thread size M12
contact surface gold-plated
Logistics
Customs tariff number 85366990
Country of origin CN
Compliance
SVHC free No
RoHS conform Yes
Date of RoHS guidelines 3/31/15
