T4110011081-000 | AMP

Jack, M12, 8 pole, screw connection, screw locking, straight, T4110011081-000

Order No.: 59F638
MPN:
T4110011081-000

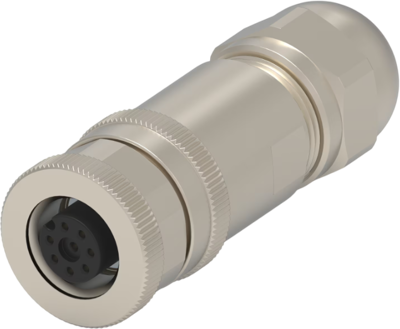

T4110011081-000 AMP Sensor-Actuator Connectors Image 1

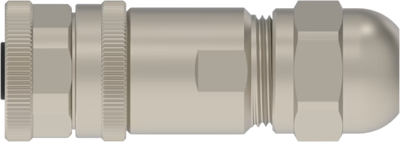

T4110011081-000 AMP Sensor-Actuator Connectors Image 2
Image may differ
Unit Price (€ / pc.)
19.8611 € *
Available in 5 Days: 2 pcs. - if ordered today
Total Price:
19.86 € *
Price list
Quantity
Price per unit*
1 pcs.
19.8611 €
10 pcs.
18.4688 €
25 pcs.
16.9932 €
50 pcs.
15.4700 €
*incl. VAT plus shipping costs
Subject to prior sale

Female connector, T4110011081-000, AMP

8 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Nickel, M12 Connector.

Technical specifications
Type of locking screw locking
contact surface gold-plated
Orientation straight
Assembly cable assembly
Pin number 8 pole
Product type socket
Thread size M12
Coding A
Degree of protection (IP) IP67
Contact connection screw connection
Logistics
Country of origin CN
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
