T4110011021-000 | AMP

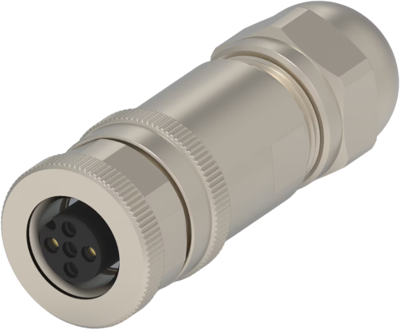

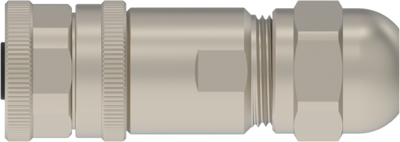

Jack, M12, 2 pole, screw connection, screw locking, straight, T4110011021-000
Order No.: 59F635
MPN:
T4110011021-000
Unit Price (€ / pc.)
10.8290 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
10.83 € *
Price list
Quantity
Price per unit*
1 pcs.
10.8290 €
10 pcs.
10.0555 €
25 pcs.
9.3772 €
50 pcs.
8.5323 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, T4110011021-000, AMP
2 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Nickel, M12 Connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Assembly | cable assembly | |
| Coding | A | |
| Type of locking | screw locking | |
| Contact connection | screw connection | |
| Pin number | 2 pole | |
| Degree of protection (IP) | IP67 | |
| Product type | jack | |
| contact surface | gold-plated | |
| Orientation | straight | |
| Thread size | M12 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
