T4110001081-000 | AMP

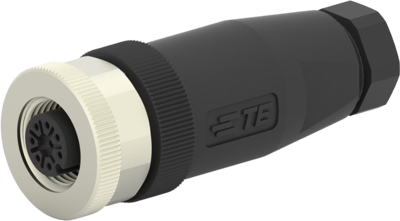

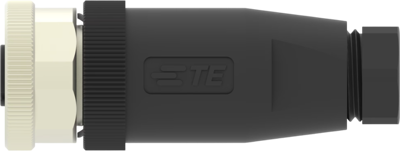

Jack, M12, 8 pole, screw connection, screw locking, straight, T4110001081-000
Order No.: 59F651
MPN:
T4110001081-000
Unit Price (€ / pc.)
11.5311 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
11.53 € *
Price list
Quantity
Price per unit*
1 pcs.
11.5311 €
10 pcs.
10.7100 €
25 pcs.
9.9960 €
50 pcs.
9.0916 €
*incl. VAT plus shipping costs
Subject to prior sale
Female connector, T4110001081-000, AMP
8 Position Circular Connector, Cable-to-Cable, Sealable, Wire & Cable, Signal, Cable Mount (Free-Hanging), Reverse Gender, Unplated, M12 Connector.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Assembly | cable assembly | |
| Coding | A | |
| Thread size | M12 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Product type | jack | |
| contact surface | gold-plated | |
| Contact connection | screw connection | |
| Pin number | 8 pole |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
