T4041017031-000 | AMP

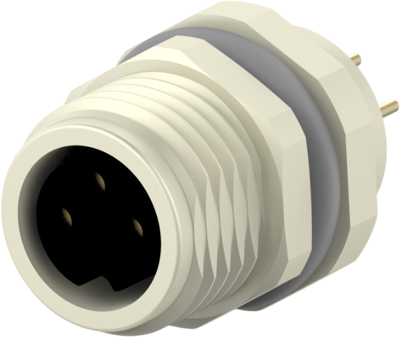

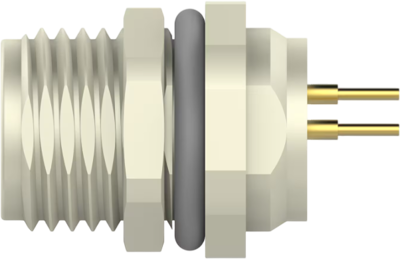

Panel socket, M8, 3 pole, solder connection, screw locking, straight, T4041017031-000
Order No.: 59F719
MPN:
T4041017031-000
Unit Price (€ / pc.)
7.5208 € *
Standard delivery time from the manufacturer is: 24 Weeks
Total Price:
7.52 € *
Price list
Quantity
Price per unit*
1 pcs.
7.5208 €
10 pcs.
6.9972 €
50 pcs.
6.4379 €
100 pcs.
5.8548 €
*incl. VAT plus shipping costs
Subject to prior sale
Built-in socket, T4041017031-000, AMP
3 Position Circular Connector, Wire-to-Panel, Sealable, Wire & Cable, Signal, Panel Mount, Reverse Gender, Nickel, Copper Alloy, A Code, M8 Connector.
Technical specifications
| Degree of protection (IP) | IP67 | |
| Assembly | panel mounting | |
| Coding | A | |
| Thread size | M8 | |
| Orientation | straight | |
| Type of locking | screw locking | |
| Product type | panel socket | |
| contact surface | gold-plated | |
| Contact connection | solder connection | |
| Pin number | 3 pole |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
