2-1571552-5 | AMP
IC socket, 18 pole, pitch 2.54 mm (7.62 mm), copper beryllium for DIL-IC, 2-1571552-5
Vom Hersteller nicht mehr lieferbar
Unit Price (€ / pc.)
2.2967 € *
Available: 361 pcs.
Leadtime: On Request **
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
26 pcs.
1.9516 €
104 pcs.
1.8088 €
260 pcs.
1.7017 €
1014 pcs.
1.5708 €
*incl. VAT plus shipping costs
**Subject to prior sale

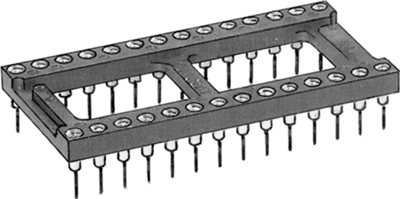

IC socket, 2-1571552-5, AMP
With sealed contact socket (to prevent the ingress of solder and flux) and open frame; Insulation: thermoplastic polyester to UL 94 V-0. Operating temperatures: –55 to +105 °C. Contact rating: 3.0 A. Socket contacts: gold-plated beryllium copper, tinned sleeve. Spring: four fingers type, gold-plated.

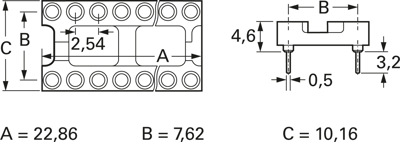

Technical attributes (type, number of poles, dimensions): 818-AG11D-ESL, 18-pole, A 22.86, B 7.62, C 10.16 mm
Technical specifications
| Version | IC-Fassung | |
| Width | 10.16 mm | |
| Suitable for | DIL-IC | |
| Height | 7.74 mm | |
| Contact material | Kupferberyllium | |
| Length | 22.86 mm | |
| Material | Thermoplast | |
| max. operating temperature | 105 °C | |
| min. operating temperature | -55 °C | |
| Rated current | 3 A | |
| Pin number | 18-polig | |
| Grid | 2.54 mm |
Download
Logistics
| Country of origin | JP |
| Customs tariff number | 85366990 |
| Original Packaging | Stange mit 26 Stück |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
