1634202-3 | AMP

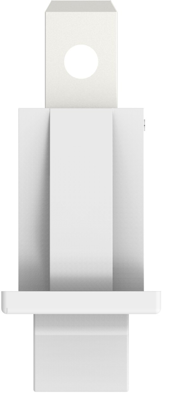

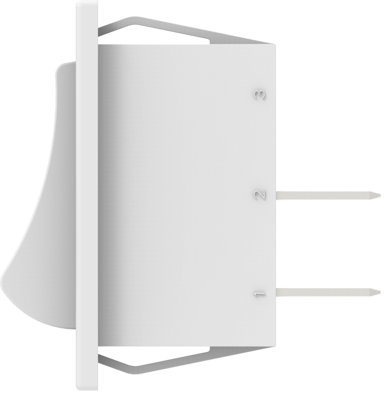

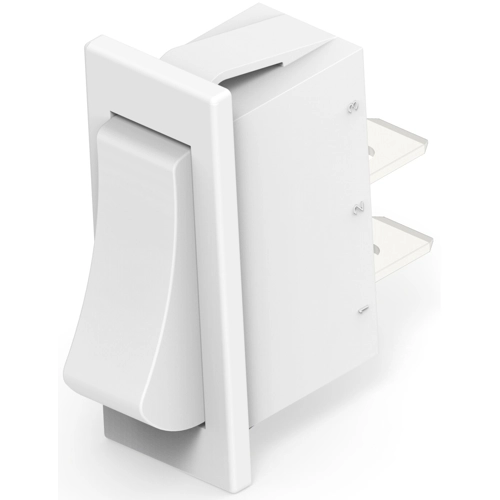

Rocker switch, black, 1 pole, On-Off, off switch, 10 A/125 VAC, unlit, printed, 1634202-3
Unit Price (€ / pc.)
3.3915 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
3.39 € *
Price list
Quantity
Price per unit*
1 pcs.
3.3915 €
10 pcs.
3.1416 €
25 pcs.
2.9393 €
50 pcs.
2.6656 €
*incl. VAT plus shipping costs
Subject to prior sale
Rocker Switch, 1634202-3, AMP
Product Type: Switch, Rocker Switch Type: Power, Lamp: Without, Rocker Switch LED: Without, Actuator Type: Top, Indicator/Imprint Color: White, Indicator/Imprint Legend: O -, Panel Cutout Size: 30.2 x 11.2 mm, Configuration (Pole-Throw): Single Pole - Single Throw, Operating Function: On Off, Rocker Switch Voltage Rating: 125 VAC,250 VAC, Beveled Frame Color: Black, Actuator Color: Black, Terminal Tab Width: 6.35 mm, Switch Contact Plating Material: Silver Tin Oxide, Rocker Switch Contact Current Rating: 10 A, Termination Type: Quick Connect, Mounting Angle: Vertical, Rocker Switch Mounting Type: Panel, Process Sealed: No, VDE Tested: Yes, Comment: Dust Resistant.,Non-Illuminated
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Printed | Yes | |
| Wall thickness | 0.75 to 3 mm | |
| contact surface | silver-plated | |
| min. Geräteausschnitt | 30.2 x 11.2 mm | |
| Breaking capacity | 10 A/125 VAC | |
| Actuator colour | black | |
| Pin number | 1 pole | |
| Design | rectangular | |
| illuminated | No | |
| Connection | quick connection | |
| Shift position | On-Off | |
| Latching switching function | off switch |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85365080 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
