963814-2 | AMP

Uninsulated flat plug sleeve, 2.8 x 0.79 mm, 0.5 to 1 mm², AWG 20 to 17, copper alloy, tin plated, 963814-2

Order No.: 72P2379
EAN: 4099891714253
MPN:
963814-2

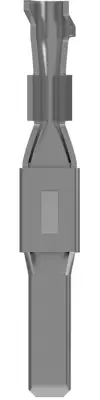

963814-2 AMP Receptacles Image 1

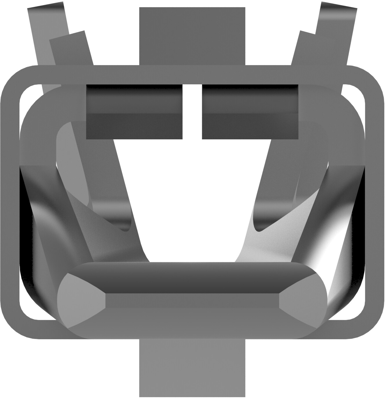

963814-2 AMP Receptacles Image 2

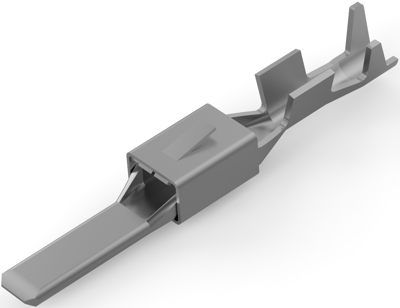

963814-2 AMP Receptacles Image 3

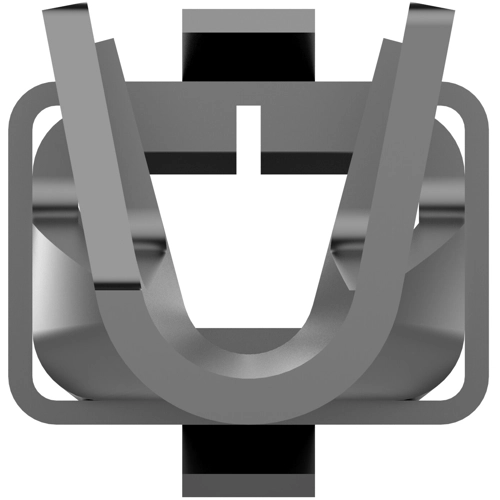

963814-2 AMP Receptacles Image 4

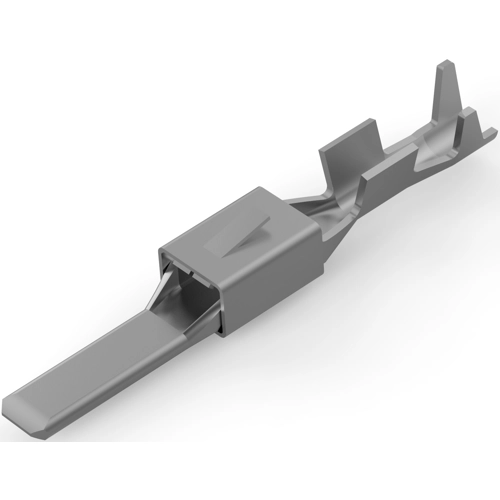

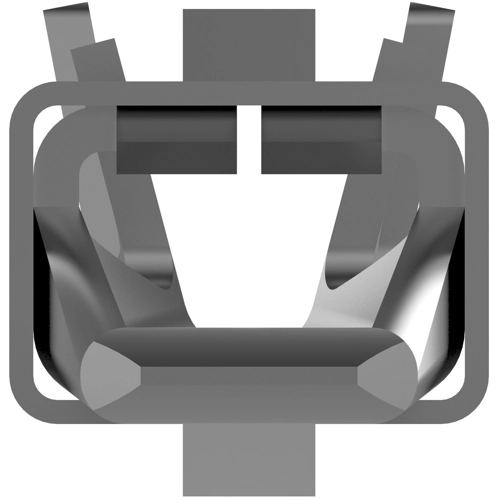

963814-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.3213 € *
Standard delivery time from the manufacturer is: 25 Weeks
Total Price:
1.61 € *
Price list
Quantity
Price per unit*
5 pcs.
0.3213 €
10 pcs.
0.2951 €
25 pcs.
0.2749 €
50 pcs.
0.2487 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug sleeve, 963814-2, AMP

Quick disconnect, Tab, 20-17 AWG Wire size, 0.5-1 mm² Wire size, 1021-2048 CMA Wire size, Mating tab width 2.8 mm.

Technical specifications
Filter Property Value
Suitable for 2.8 x 0.79 mm
Material copper alloy, tin plated
AWG cross-section AWG 20 to 17
Version flat plug sleeve
Isolated No
Cable cross-section 0.5 to 1 mm²
Length 26 mm
Connection crimp connection
Logistics
Property Value
Country of origin CN
Customs tariff number 85389099
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
