925603-2 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.51 to 1.65 mm², AWG 20 to 15, phosphor bronze, tin-plated, 925603-2

Order No.: 34P7652
EAN: 4099889619331
MPN:
925603-2
Series: FASTIN-FASTON

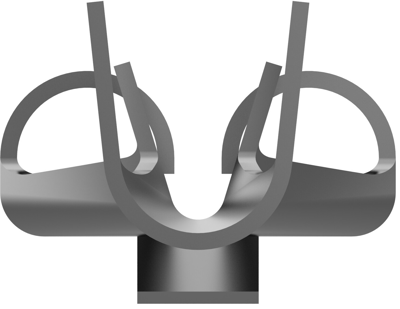

925603-2 AMP Receptacles Image 1

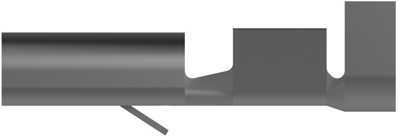

925603-2 AMP Receptacles Image 2

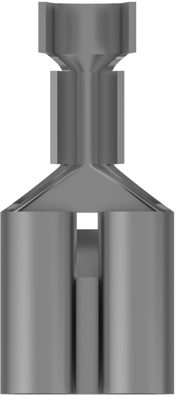

925603-2 AMP Receptacles Image 3

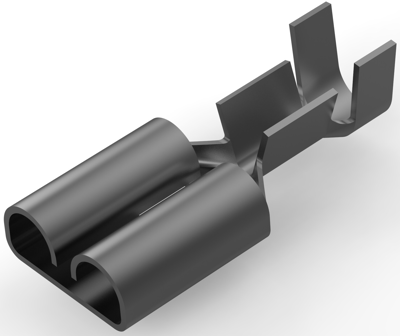

925603-2 AMP Receptacles Image 4

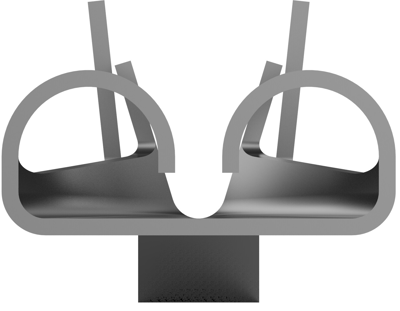

925603-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.3808 € *
Available in 5 Days: 11,750 pcs. - if ordered today
Total Price:
0.38 € *
Price list
Quantity
Price per unit*
1 pcs.
0.3808 €
10 pcs.
0.3570 €
25 pcs.
0.3332 €
50 pcs.
0.3035 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat receptacle, 925603-2, TE Connectivity

Terminates To: Wire & Cable, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Phosphor Bronze, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.33 mm, Wire Size: 20 – 15 AWG, Wire Size: 0.51 – 1.65 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, Packaging Quantity: 500, Packaging Method: Loose Piece/Carton, Line: FASTON .250

Technical specifications
Filter Property Value
Connection crimp connection
Material phosphor bronze, tin-plated
Suitable for 6.35 x 0.81 mm
Version flat plug sleeve
Isolated No
AWG cross-section AWG 20 to 15
Length 19.2 mm
Cable cross-section 0.51 to 1.65 mm²
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
