900319-1 | AMP

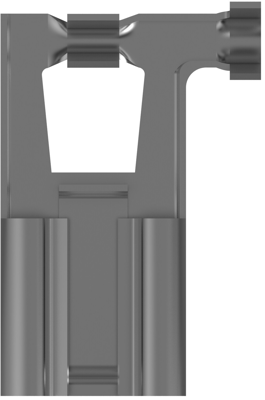

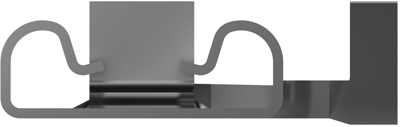

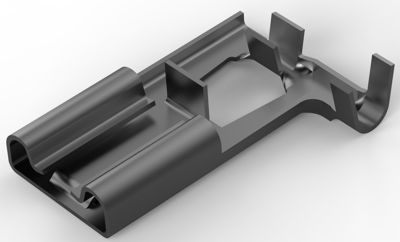

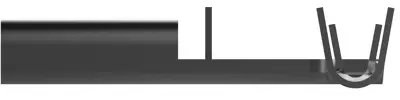

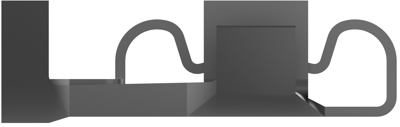

Uninsulated flat plug sleeve, 7.92 x 0.81 mm, 0.51 to 0.82 mm², AWG 20 to 18, brass, tin-plated, 900319-1
Unit Price (€ / pc.)
0.2547 € *
Available in 5 Days: 6,000 pcs. - if ordered today
Total Price:
1.27 € *
Price list
Quantity
Price per unit*
5 pcs.
0.2547 €
10 pcs.
0.2356 €
25 pcs.
0.2190 €
50 pcs.
0.1987 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick disconnect, 900319-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Pre-Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.33 mm, Wire Size: 20 – 18 AWG, Wire Size: 0.51 – .82 mm², Quick Disconnect Mating Tab Width: 7.92 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 2000, Quick Disconnect Packaging Method: Strip/Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 7.92 x 0.81 mm | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 20 to 18 | |
| Version | flat plug sleeve | |
| Isolated | No | |
| Cable cross-section | 0.51 to 0.82 mm² | |
| Length | 18.3 mm | |
| Connection | crimp connection |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
