9-520132-2 | AMP

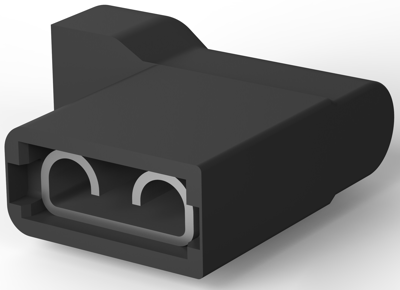

Insulated flat plug sleeve, 6.35 x 0.81 mm, 1.31 to 2.08 mm², AWG 16 to 14, Brass, tin-plated, black, 9-520132-2

Order No.:  35P4498
Series:  Ultra-Fast
EAN: 4099889627138
default L
front L
side L
back L
top L
default S
front S
side S
back S
top S
Images may differ
Unit Price (€ / pc.)
0.3332 € *
Available: 0 pcs.
Available in 5 Days: 2,100 pcs.
Leadtime: 15 Weeks **
Add to Cart
Total Price:
0.33 € *
*incl. VAT plus shipping costs
**Subject to prior sale
2100 pcs.
0.3332 €

Quick disconnect, 9-520132-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Flag, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 16 – 14 AWG, Wire Size: 1.31 – 2.08 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 2100, Quick Disconnect Packaging Method: Strip/Reel, Barrel Color: Black

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 16 to 14
Insulation colour black
Suitable for 6.35 x 0.81 mm
Isolated Yes
Length 16.05 mm
Cable cross-section 1.31 to 2.08 mm²
Material Brass, tin-plated
Show similar products (0)
Country of origin US
Customs tariff number 85369095
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
