9-1377174-1 | AMP

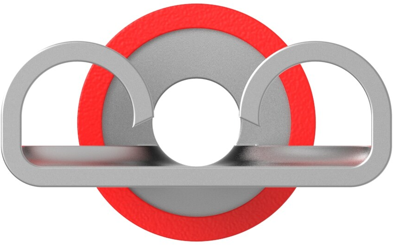

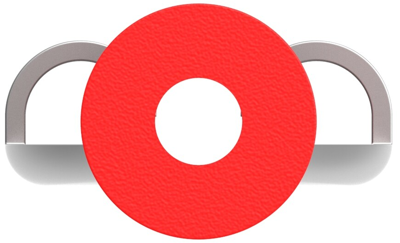

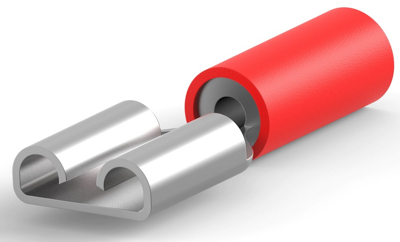

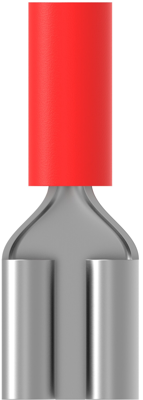

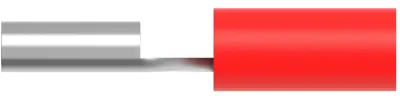

Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.3 to 1.5 mm², AWG 22 to 15, brass, tin-plated, red, 9-1377174-1
Order No.: 39P3521
EAN: 4099889629279
MPN:
9-1377174-1
Unit Price (€ / pc.)
0.6545 € *
Available in 5 Days: 500 pcs. - if ordered today
Flat receptacle, 9-1377174-1, TE Connectivity
Wire Stop: No, Insertion Force: Normal, Sealable: No, Insulated: Yes, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: No, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Accepts Wire Insulation Diameter Range: 3.5 mm, Wire Size: 22 – 15 AWG, Wire Size: 0.3 – 1.5 mm², Wire Size: 592 – 2960 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 100, Packaging Method: Box, Barrel Color: Red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 6.35 x 0.81 mm | |
| Connection | crimp connection | |
| Isolated | Yes | |
| Material | brass, tin-plated | |
| AWG cross-section | AWG 22 to 15 | |
| Version | flat plug sleeve | |
| Length | 20.88 mm | |
| Insulation colour | red | |
| Cable cross-section | 0.3 to 1.5 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
