735279 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 0.26 to 0.96 mm², AWG 20 to 18, brass, tin-plated, red, 735279

Order No.: 07F262
EAN: 4099889618686
MPN:
735279
0-0735279-0
Series: FASTON

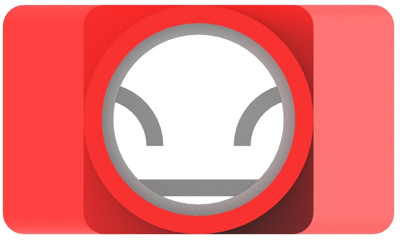

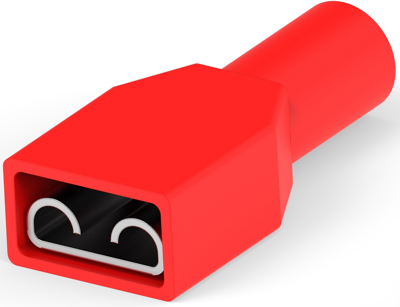

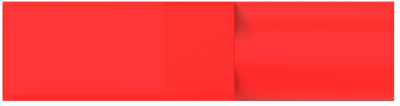

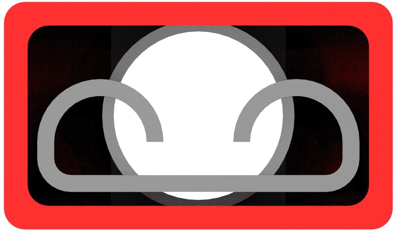

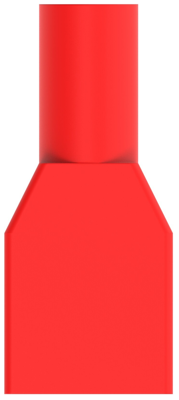

735279 AMP Receptacles Image 1
735279 AMP Receptacles Image 2
735279 AMP Receptacles Image 3
735279 AMP Receptacles Image 4
735279 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.7854 € *
Available: 2,708 pcs.
Available in 5 Days: 6,791 pcs. - if ordered today
Total Price:
0.79 € *
Price list
Quantity
Price per unit*
1 pcs.
0.7854 €
10 pcs.
0.7140 €
50 pcs.
0.6783 €
100 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale

Receptacle, 735279, AMP

Receptacle, insulated, made of tinned brass; Receptacle insulation: Nylon.

Technical attributes (type, mating width x mating thickness, color, conductor cross-section. insulation diameter): 0-0735279-0, 6.3 x 0.8 mm, red, 0.3 to 1.0 mm², 3.3 mm.

Technical specifications
Filter Property Value
AWG cross-section AWG 20 to 18
Length 21.5 mm
Insulation colour red
Material brass, tin-plated
Isolated Yes
Suitable for 6.35 x 0.81 mm
Connection crimp connection
Version flat plug sleeve
Cable cross-section 0.26 to 0.96 mm²
Logistics
Property Value
Customs tariff number 85366990
Country of origin US
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
