735278-1 | AMP

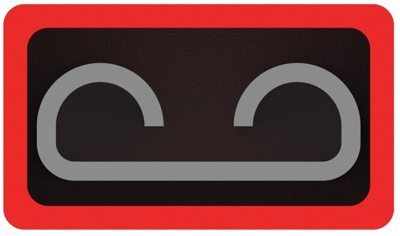

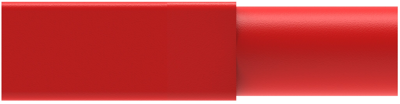

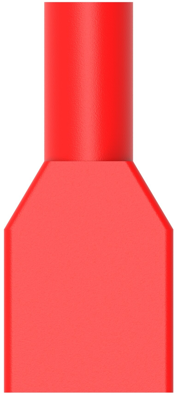

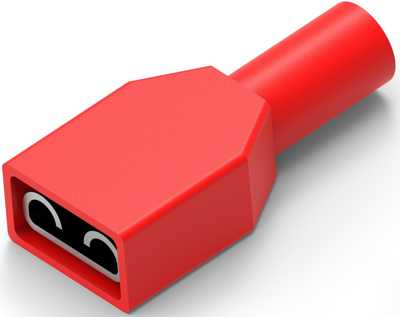

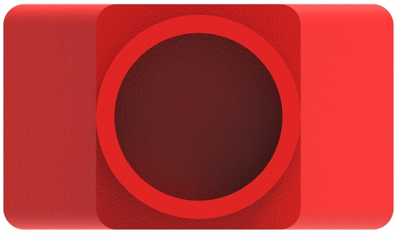

Insulated flat plug sleeve, 6.35 x 0.81 mm, 1.0 to 1.5 mm², AWG 17 to 15, brass, tin-plated, red, 735278-1
Unit Price (€ / pc.)
1.1186 € *
Available in 5 Days: 1,851 pcs. - if ordered today
Total Price:
1.12 € *
Price list
Quantity
Price per unit*
1 pcs.
1.1186 €
10 pcs.
1.0472 €
25 pcs.
0.9758 €
50 pcs.
0.8806 €
*incl. VAT plus shipping costs
Subject to prior sale
Quick disconnect, 735278-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: Yes, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: Yes, Quick Disconnect Plating Material: Tin, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Barrel Type: Closed, Wire Insulation Support: With, Overall Length: 21.6 mm, Wire Size: 17 – 15 AWG, Wire Size: 1 – 1.5 mm², Wire Size: 1980 – 3260 CMA, Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Fully Insulated, Operating Temperature Range: 105 °C, Packaging Quantity: 100, Quick Disconnect Packaging Method: Bag, Barrel Color: Red
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 17 to 15 | |
| Length | 21.6 mm | |
| Insulation colour | red | |
| Connection | crimp connection | |
| Suitable for | 6.35 x 0.81 mm | |
| Cable cross-section | 1.0 to 1.5 mm² | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Isolated | Yes |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | US |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
