735160 | AMP

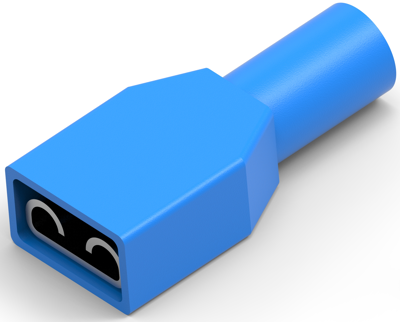

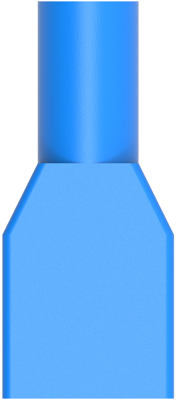

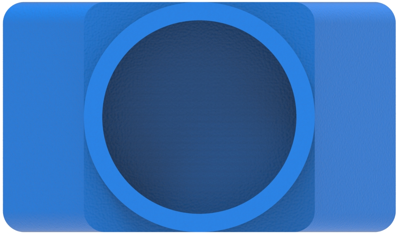

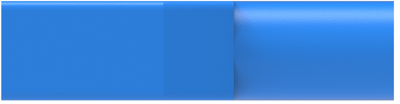

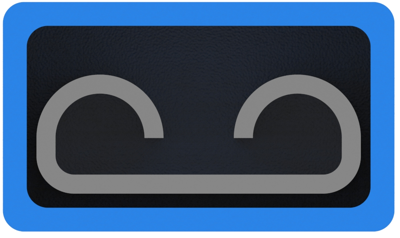

Insulated flat plug sleeve, 6.35 x 0.81 mm, 3.0 mm², AWG 12, brass, tin-plated, blue, 735160
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.9639 € *
Available: 9 pcs.
Available in 12 Days: 53,575 pcs. - if ordered today
Total Price:
0.96 € *
Price list
Quantity
Price per unit*
1 pcs.
0.9639 €
10 pcs.
0.8925 €
25 pcs.
0.8330 €
50 pcs.
0.7616 €
*incl. VAT plus shipping costs
Subject to prior sale
Receptacle, 735160, AMP
Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: Yes, Voltage (Max): 300 V, Insulation Material: Nylon, Fully Insulated: Yes, Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: Compression, Wire Insulation Support: With, Overall Length: 21.5 mm, Wire Size: 12 AWG, Wire Size: 3 mm², Wire Size: 6088 – 6654 CMA, Mating Tab Width: 6.35 mm, Operating Temperature Range: 105 °C, Packaging Quantity: 100, Packaging Method: Bag, Comment: Fully Insulated
Technical Data
- AWG conductor cross-section: AWG 13 to 12
- Material: Brass, tin-plated
- Length: 21,5 mm
- Isolated: Yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass, tin-plated | |
| Isolated | Yes | |
| Insulation colour | blue | |
| Connection | crimp connection | |
| Cable cross-section | 3.0 mm² | |
| AWG cross-section | AWG 12 | |
| Length | 21.5 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
