7-520365-2 | AMP

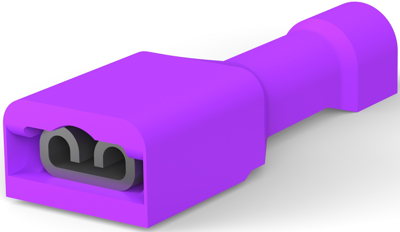

Insulated flat plug sleeve, 2.8 x 0.51 mm, 0.13 to 0.2 mm², AWG 26 to 22, Brass, tin-plated, purple, 7-520365-2

Order No.:  35P4544
Series:  Ultra-Fast
EAN: 4099889627589
default L

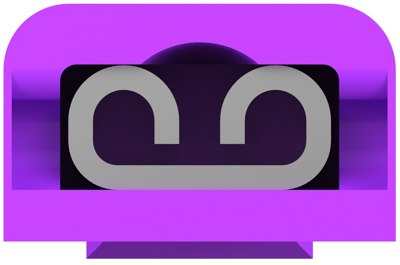

front L
side L

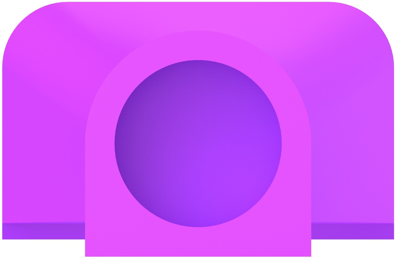

back L
top L
default S
front S
side S
back S
top S
Images may differ
Unit Price (€ / pc.)
0.1880 € *
Available: 0 pcs.
Available in 5 Days: 52,871 pcs.
Leadtime: 15 Weeks **
Add to Cart
Total Price:
0.19 € *
*incl. VAT plus shipping costs
**Subject to prior sale
3000 pcs.
0.1880 €

Quick disconnect, 7-520365-2, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Voltage (Max): 600 V, Insulation Material: Nylon, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 26 – 24 AWG, Wire Size: 0.13 – .2 mm², Wire Size: 254 – 404 CMA, Quick Disconnect Mating Tab Width: 2.8 mm,3.18 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Flammability Rating: UL 94V-2, Packaging Quantity: 3000, Quick Disconnect Packaging Method: Strip/Reel, Barrel Color: Purple

Technical specifications
Connection crimp connection
Version flat plug sleeve
AWG cross-section AWG 26 to 22
Insulation colour purple
Suitable for 2.8 x 0.51 mm
Isolated Yes
Length 18.7 mm
Cable cross-section 0.13 to 0.2 mm²
Material Brass, tin-plated
Show similar products (0)
Country of origin CZ
Customs tariff number 85366990
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
