66025-2 | AMP

Insulated flat plug sleeve, 6.35 x 0.81 mm, 2.62 to 6.64 mm², AWG 12 to 10, copper, tin-plated, yellow, 66025-2

Order No.: 38P7604
EAN: 4099889629149
MPN:
66025-2
Series: FASTON

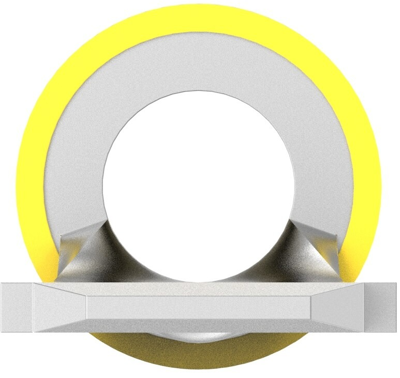

66025-2 AMP Receptacles Image 1

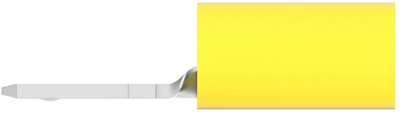

66025-2 AMP Receptacles Image 2

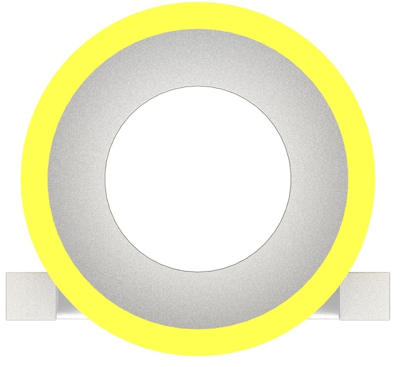

66025-2 AMP Receptacles Image 3

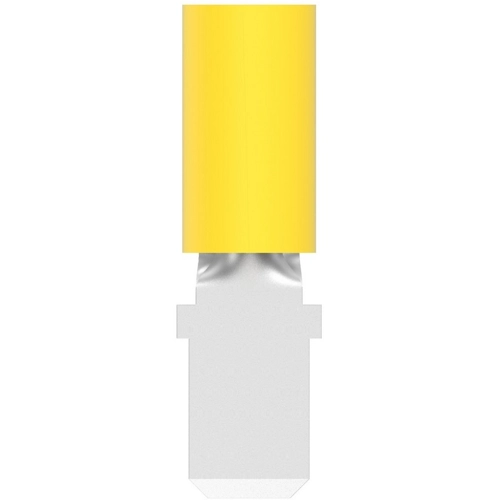

66025-2 AMP Receptacles Image 4

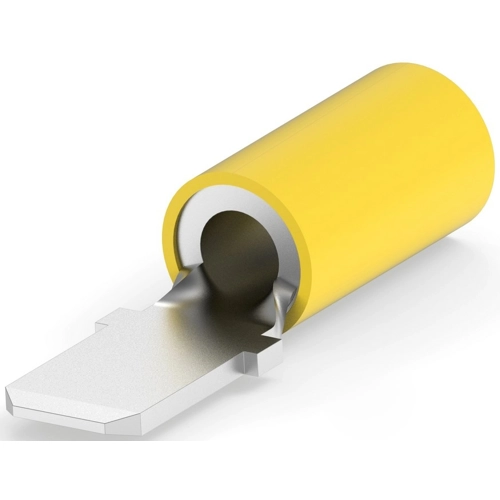

66025-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
1.3209 € *
Standard delivery time from the manufacturer is: 10 Weeks
Total Price:
1.32 € *
Price list
Quantity
Price per unit*
1 pcs.
1.3209 €
10 pcs.
1.1900 €
50 pcs.
1.0710 €
100 pcs.
0.9639 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 66025-2, AMP

Terminates To: Wire & Cable, Sealable: No, Insulated: Yes, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Copper Alloy, Crimp Type: Compression, Wire Insulation Support: Without, Overall Length: 27.94 mm, Wire Size: 12 – 10 AWG, Wire Size: 2.62 – 6.64 mm², Wire Size: 5180 – 13100 CMA, Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Partially Insulated, Operating Temperature Range: 105 °C, Packaging Quantity: 500, Quick Disconnect Packaging Method: Box, Barrel Color: Yellow

Technical specifications
Filter Property Value
Isolated Yes
AWG cross-section AWG 12 to 10
Insulation colour yellow
Length 27.94 mm
Cable cross-section 2.62 to 6.64 mm²
Version flat plug sleeve
Material copper, tin-plated
Connection crimp connection
Suitable for 6.35 x 0.81 mm
Logistics
Property Value
Country of origin IN
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
