63968-1 | AMP

Uninsulated flat plug sleeve, 5.21 x 0.81 mm, 0.82 to 3.31 mm², nickel, tin-plated, 63968-1

Order No.: 60F172
MPN:
63968-1
Series: FASTON 205

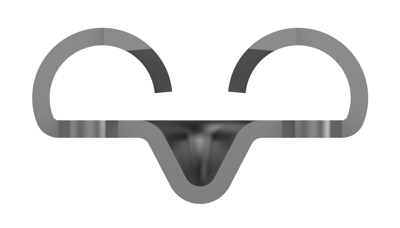

63968-1 AMP Receptacles Image 1

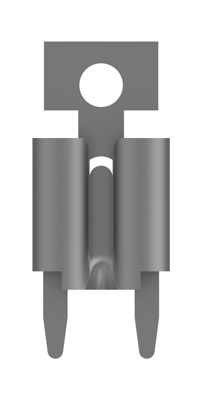

63968-1 AMP Receptacles Image 2

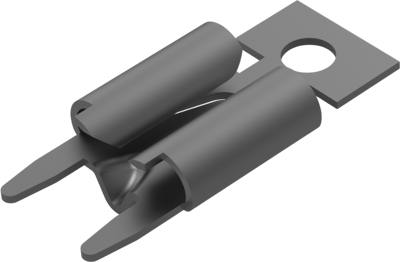

63968-1 AMP Receptacles Image 3

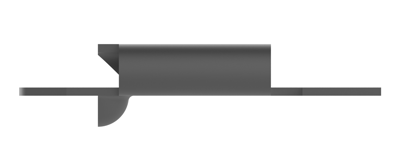

63968-1 AMP Receptacles Image 4

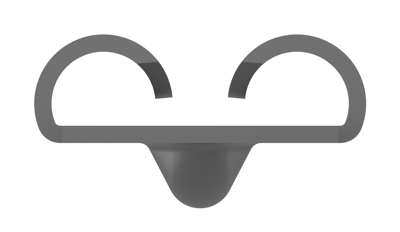

63968-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2332 € *
Standard delivery time from the manufacturer is: 27 Weeks
Total Price:
0.23 € *
Price list
Quantity
Price per unit*
1 pcs.
0.2332 €
10 pcs.
0.2166 €
25 pcs.
0.2023 €
50 pcs.
0.1845 €
*incl. VAT plus shipping costs
Subject to prior sale

PCB solder sleeve receptacle, 63968-1, AMP

Receptacle, 5.21 mm / 6.35 mm Tab Width, 1.4 mm PCB Hole, Through Hole-Solder, Tin Plating, FASTON 205, PCB Terminals.

Technical specifications
Filter Property Value
Connection solder connection
Material nickel, tin-plated
Suitable for 5.21 x 0.81 mm
Version flat plug sleeve
Isolated No
Length 12.19 mm
Cable cross-section 0.82 to 3.31 mm²
Logistics
Property Value
Country of origin US
Customs tariff number 85369010
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
