63854-1 | AMP

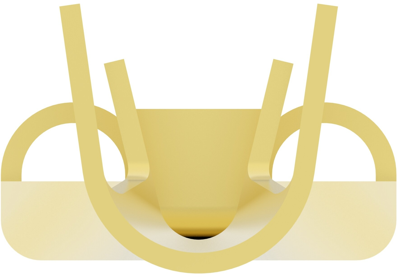

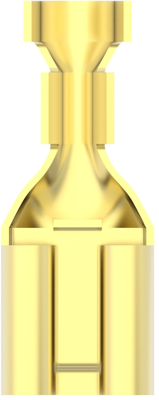

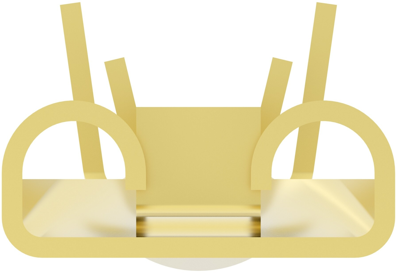

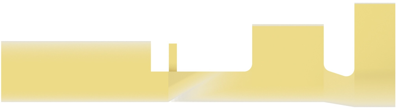

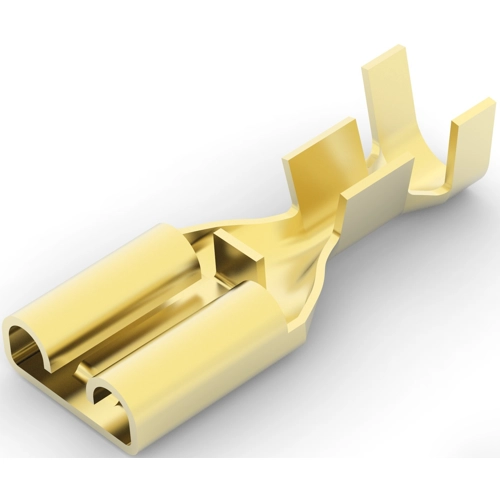

Name: Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, 63854-1
Brand: AMP
SKU: 35P3747
Price: 0.08 EUR
Availability: OutOfStock

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, 63854-1

Order No.: 35P3747

EAN: 4099889626834

MPN:

63854-1

Series: Positive Lock 250

Image may differ

Key Specification:

Version flat plug sleeve

Suitable for 6.35 x 0.81 mm

Material brass

Isolated No

Download Datasheet Technical specifications

Unit Price (€ / pc.)

0.0833 € *

Available: 0 pcs.

Leadtime: 21 Weeks **

Add to Cart

Total Price:

0.08 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Quick disconnect, 63854-1, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 10000, Quick Disconnect Packaging Method: Strip/Reel

Technical specifications

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

DID – Dimension drawing - EN DID – Dimension drawing

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	US
Customs tariff number	85389091

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes

Accessory

Insulating housing for 5 mm, 3 pole, polyamide, black, 142681

Order No.:

35P3487

Manufacturer SKU:

142681

Available: 0 pcs. Available in 5 Days: 9,505 pcs. Leadtime: 1 Week **

0.18 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 2 pole, nylon, UL 94V-2, natural, 521955-1

Order No.:

35P3687

Manufacturer SKU:

521955-1

Available: 0 pcs. Available in 5 Days: 9,353 pcs. Leadtime: 1 Week **

0.29 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 2 pole, nylon, UL 94V-2, natural, 521253-1

Order No.:

35P3677

Manufacturer SKU:

521253-1

Available: 0 pcs. Available in 5 Days: 77,000 pcs. Leadtime: 1 Week **

0.17 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing, 2 pole, polyamide, brown, 142680-1

Order No.:

35P3526

Manufacturer SKU:

142680-1

Available: 0 pcs. Available in 5 Days: 19,350 pcs. Leadtime: 1 Week **

0.32 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 5 mm, 3 pole, polyamide, brown, 142681-1

Order No.:

35P3525

Manufacturer SKU:

142681-1

Available: 0 pcs. Leadtime: 13 Weeks **

0.33 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 2 pole, nylon, UL 94V-0, red, 1-520935-2

Order No.:

35P3671

Manufacturer SKU:

1-520935-2

Available: 0 pcs. Leadtime: 21 Weeks **

0.25 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 5 mm, 2 pole, polyamide, yellow, 142680-4

Order No.:

35P3524

Manufacturer SKU:

142680-4

Available: 0 pcs. Leadtime: 8 Weeks **

0.63 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 1 pole, nylon, UL 94V-2, blue, 521120-4

Order No.:

35P3676

Manufacturer SKU:

521120-4

Available: 0 pcs. Leadtime: 8 Weeks **

0.07 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 1 pole, nylon, UL 94V-2, natural, 521120-1

Order No.:

35P3673

Manufacturer SKU:

521120-1

Available: 0 pcs. Leadtime: 21 Weeks **

0.09 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 5 mm, 2 pole, polyamide, white, 142680-9

Order No.:

35P3498

Manufacturer SKU:

142680-9

Available: 0 pcs. Leadtime: 12 Weeks **

0.24 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 2 pole, nylon, UL 94V-0, natural, 521766-1

Order No.:

35P3674

Manufacturer SKU:

521766-1

Available: 0 pcs. Leadtime: 21 Weeks **

0.51 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 2 pole, nylon, UL 94V-2, black, 520935-3

Order No.:

35P3691

Manufacturer SKU:

520935-3

Available: 0 pcs. Leadtime: 21 Weeks **

0.57 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 2 pole, nylon, UL 94V-2, natural, 521119-1

Order No.:

35P3675

Manufacturer SKU:

521119-1

Available: 0 pcs. Leadtime: 21 Weeks **

0.33 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

Insulating housing for 6.35 mm, 2 pole, nylon, UL 94V-2, natural, 520935-1

Order No.:

35P3692

Manufacturer SKU:

520935-1

Available: 0 pcs. Leadtime: 21 Weeks **

0.25 € per pc. *

*incl. VAT plus shipping costs

**Subject to prior sale

On our category pages and product pages you will find the following green symbols:

Available via download:

Schematic symbols
PCB footprints
3D models

Schematic symbols and PCB footprints are available

Available via download:

Schematic symbols
PCB footprints

No models are currently available

Circuit diagram symbols and PCB footprint can be requested by clicking on the icon for the respective product.

Country	Runtime days	Freight excl. VAT	Freight incl. VAT
Germany	1	6,90 €	8,21 €
Austria	1-2	8,30 €	9,96 €
Switzerland	1-2	16,40 €	19,52 €

	Connection	crimp connection
	Version	flat plug sleeve
	AWG cross-section	AWG 18 to 14
	Suitable for	6.35 x 0.81 mm
	Isolated	No
	Length	19.58 mm
	Cable cross-section	0.82 to 2.08 mm²
	Material	brass
