Unit Price (€ / pc.)
0.4165 € *
Available in 5 Days: 27,902 pcs. - if ordered today
Total Price:
2.08 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4165 €
10 pcs.
0.3808 €
25 pcs.
0.3570 €
50 pcs.
0.3213 €
*incl. VAT plus shipping costs
Subject to prior sale

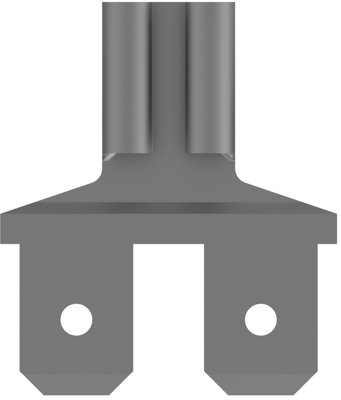

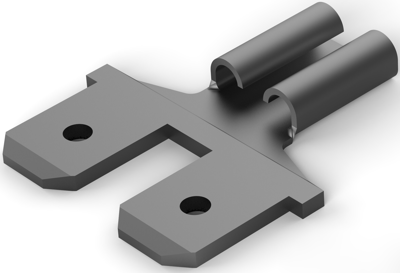

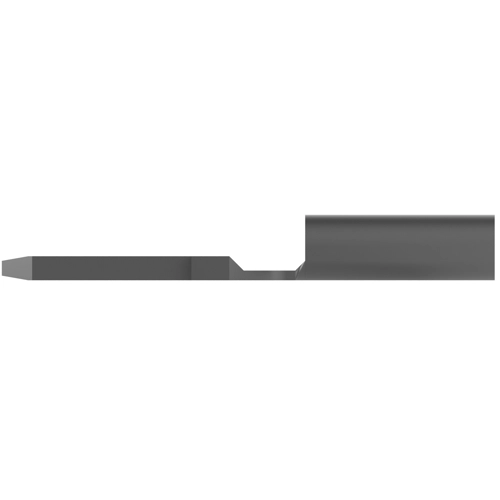

Quick disconnect, 63699-1, AMP
Wire Stop: No, Sealable: No, Insulated: No, Connection Capacity: Multiple, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab & Receptacle, Terminal & Splice Type: Tab & Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Barrel Type: Open, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.81 mm, Quick Disconnect Mating Tab Width: 4.75 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 1000, Quick Disconnect Packaging Method: Loose Piece/Carton, Comment: Premilled .013 x .032
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | 4.75 x 0.81 mm | |
| Material | brass, tin-plated | |
| Version | flat plug sleeve | |
| Isolated | No | |
| Length | 16.51 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
