63646-1 | AMP

Uninsulated flat plug sleeve, 4.75 x 0.81 mm, 0.51 to 1.31 mm², AWG 20 to 16, brass, 63646-1

Order No.: 34P7938
EAN: 4099889621181
MPN:
63646-1
Series: FASTON

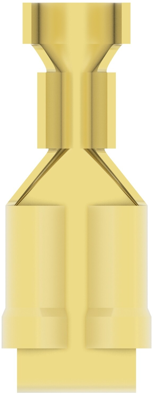

63646-1 AMP Receptacles Image 1

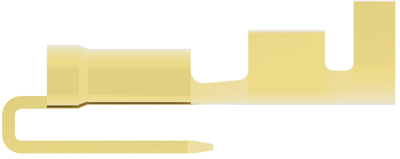

63646-1 AMP Receptacles Image 2

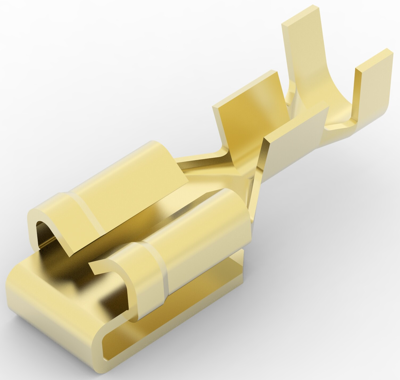

63646-1 AMP Receptacles Image 3

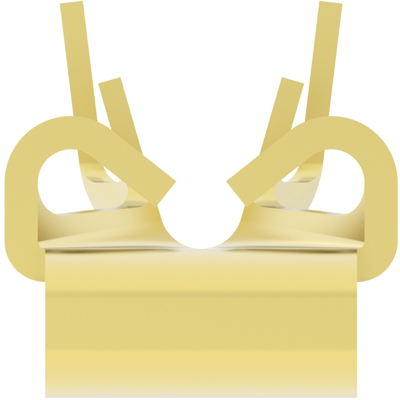

63646-1 AMP Receptacles Image 4
63646-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2237 € *
Available in 5 Days: 17,500 pcs. - if ordered today
Total Price:
22.37 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2237 €
250 pcs.
0.2059 €
500 pcs.
0.1916 €
1000 pcs.
0.1725 €
*incl. VAT plus shipping costs
Subject to prior sale

Quick disconnect, 63646-1, AMP

Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Tab & Receptacle, Terminal & Splice Type: Tab & Receptacle, Quick Disconnect Terminal Orientation: Piggyback, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.36 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Quick Disconnect Mating Tab Width: 4.75 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 3500, Quick Disconnect Packaging Method: Strip/Reel

Technical specifications
Filter Property Value
Suitable for 4.75 x 0.81 mm
Material brass
AWG cross-section AWG 20 to 16
Version flat plug sleeve
Isolated No
Cable cross-section 0.51 to 1.31 mm²
Length 15.62 mm
Connection crimp connection
Logistics
Property Value
Country of origin TW
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
