63604-1 | AMP

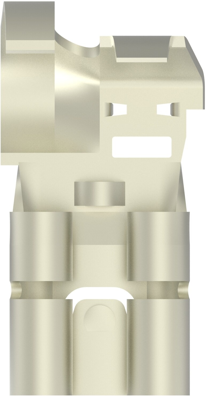

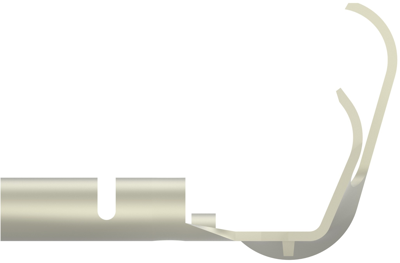

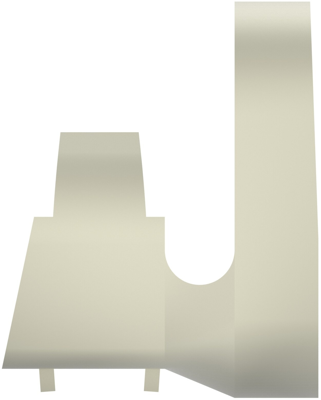

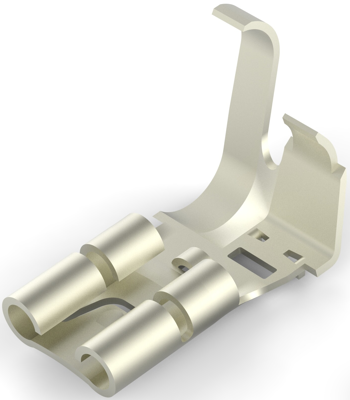

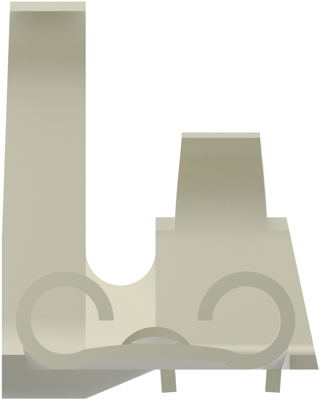

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 3.31 mm², AWG 18 to 12, steel, nickel-plated, 63604-1
Unit Price (€ / pc.)
0.1131 € *
Available: 0 pcs.
Available in 5 Days: 14,000 pcs.
Leadtime: 33 Weeks **
Flat receptacle, 63604-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Nickel, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Flag, Contact Base Material: Steel, Crimp Type: Tab-Lok, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.41 mm, Wire Size: 18 – 12 AWG, Wire Size: 0.82 – 3.31 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 250 °C, UL Rating: Listed, Packaging Quantity: 3500, Packaging Method: Strip/Reel, Comment: Stress Relieved.
Technical specifications
| Isolated | No | |
| AWG cross-section | AWG 18 to 12 | |
| Length | 17.02 mm | |
| Cable cross-section | 0.82 to 3.31 mm² | |
| Version | flat plug sleeve | |
| Material | steel, nickel-plated | |
| Connection | crimp connection | |
| Suitable for | 6.35 x 0.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
