63539-2 | AMP

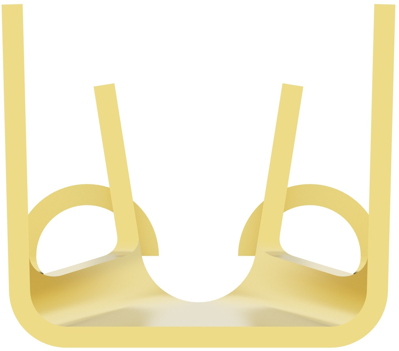

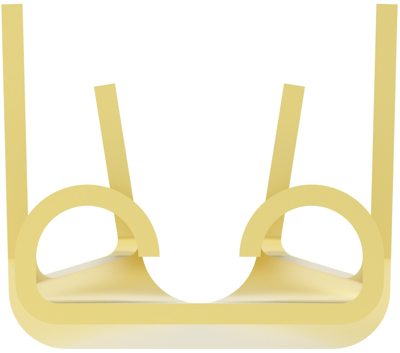

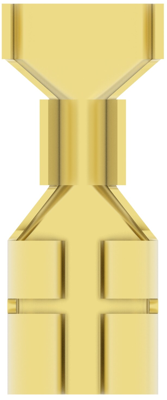

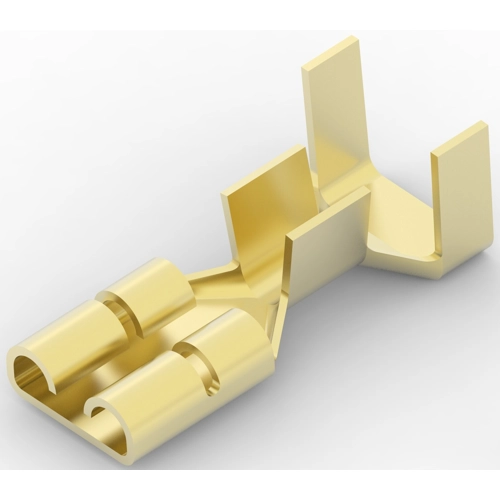

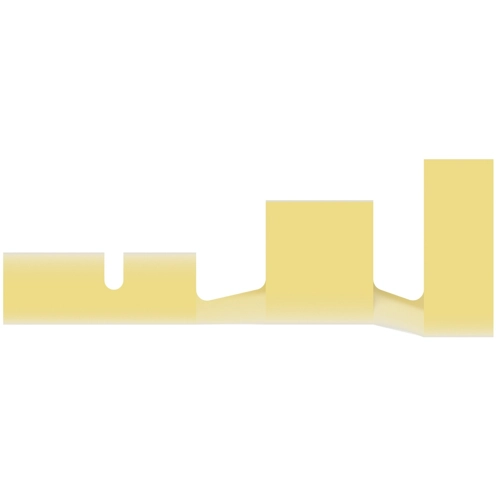

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 2.08 to 5.26 mm², AWG 14 to 10, brass, 63539-2
Unit Price (€ / pc.)
0.0940 € *
Available: 0 pcs.
Leadtime: 27 Weeks **
Total Price:
1,128.12 € *
*incl. VAT plus shipping costs
**Subject to prior sale
12000 pcs.
0.0940 €
Flat receptacle, 63539-2, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.46 mm, Wire Size: 14 – 10 AWG, Wire Size: 2.08 – 5.26 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 6000, Packaging Method: Strip/Reel, Comment: Stress Relieved.
Technical specifications
| Isolated | No | |
| AWG cross-section | AWG 14 to 10 | |
| Length | 19.18 mm | |
| Cable cross-section | 2.08 to 5.26 mm² | |
| Version | flat plug sleeve | |
| Material | brass | |
| Connection | crimp connection | |
| Suitable for | 6.35 x 0.81 mm |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
