63407-2 | AMP

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.2 to 0.51 mm², AWG 24 to 20, brass, tin-plated, 63407-2

Order No.: 72P0562
MPN:
63407-2

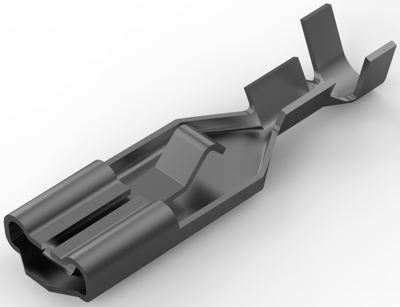

63407-2 AMP Receptacles Image 1

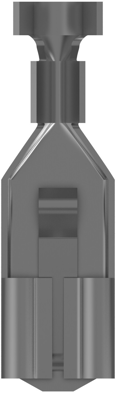

63407-2 AMP Receptacles Image 2

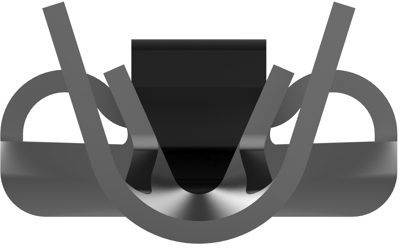

63407-2 AMP Receptacles Image 3

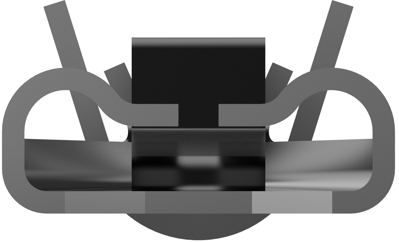

63407-2 AMP Receptacles Image 4
63407-2 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.0476 € *
Available in 5 Days: 36,000 pcs. - if ordered today
Total Price:
571.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
12000 pcs.
0.0476 €

Positive lock receptacle, 63407-2, AMP

The 63407-2 is a positive lock receptacle that is specifically designed to provide ease of assembly and secure retention to mating tabs. This product contains holes and is removable only by deflecting an integrally designed depressor prior to withdrawal. The depressor can be deflected manually by thumb pressure, or automatically by a cam inside a specially designed nylon housing.

Aside from reduced insertion force, this positive lock gives the assembler a definite mechanical “snap” when the terminal is correctly seated over the mating tab.

Features

  • Reduced insertion force
  • Locks onto tabs containing holes
  • Housing insulates and serves as a removal tool
Technical specifications
Filter Property Value
Connection crimp connection
Material brass, tin-plated
Suitable for 4.75 x 0.51 mm
Version flat plug sleeve
Isolated No
AWG cross-section AWG 24 to 20
Length 19.18 mm
Cable cross-section 0.2 to 0.51 mm²
Logistics
Property Value
Country of origin US
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
