626042-1 | AMP
Uninsulated flat plug sleeve, 2.8 x 0.51 mm, 0.51 to 1.65 mm², AWG 22 to 16, brass, 626042-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0774 € *
Available in 12 Days: 90,000 pcs. - if ordered today
Total Price:
0.77 € *
Price list
Quantity
Price per unit*
10 pcs.
0.0774 €
100 pcs.
0.0690 €
500 pcs.
0.0655 €
1000 pcs.
0.0619 €
*incl. VAT plus shipping costs
Subject to prior sale

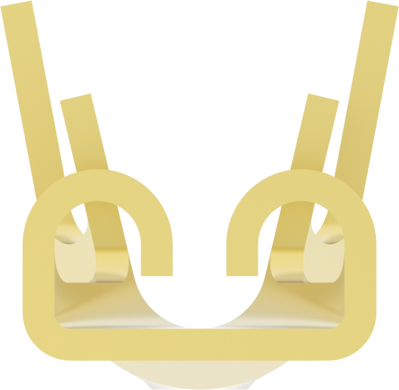

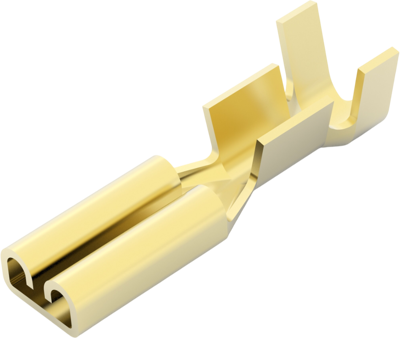

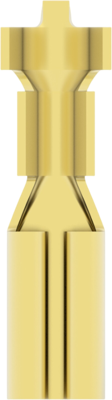

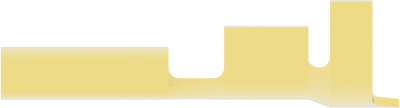

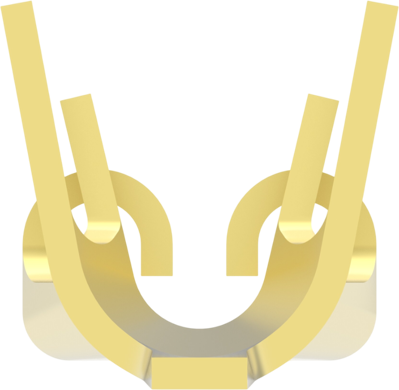

Flat plug sleeve, 626042-1, AMP
Quick Disconnect Receptacle, 22-16 AWG, 0.51-1.65 mm² Wire, 2.8 mm Tab Width, Straight, Brass, Unplated Plating, Strip/Reel, FASTON 110.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 2.8 x 0.51 mm | |
| Material | brass | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.51 to 1.65 mm² | |
| AWG cross-section | AWG 22 to 16 | |
| Length | 14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | BR |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
