62447-1 | AMP

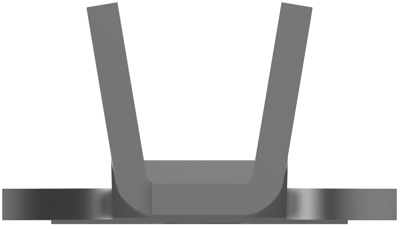

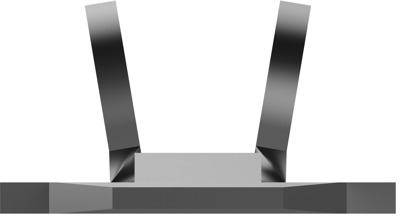

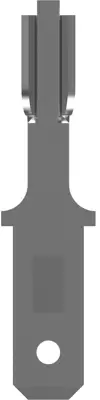

Uninsulated flat plug sleeve, 4.75 x 0.51 mm, 0.32 to 1.31 mm², AWG 22 to 16, brass, tin-plated, 62447-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0952 € *
Available in 12 Days: 8,000 pcs. - if ordered today
Quick disconnect, 62447-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Tin, Terminal Type: Tab, Terminal & Splice Type: Tab, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.51 mm, Wire Size: 22 – 16 AWG, Wire Size: 0.32 – 1.31 mm², Wire Size: 600 – 3000 CMA, Quick Disconnect Mating Tab Width: 4.75 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: 105 °C, Packaging Quantity: 8000, Quick Disconnect Packaging Method: Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 4.75 x 0.51 mm | |
| Material | brass, tin-plated | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.32 to 1.31 mm² | |
| AWG cross-section | AWG 22 to 16 | |
| Length | 25.78 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
