62223-1 | AMP

Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.82 to 2.08 mm², AWG 18 to 14, brass, 62223-1

Order No.: 34P7928
EAN: 4099889621099
MPN:
62223-1
Series: FASTON

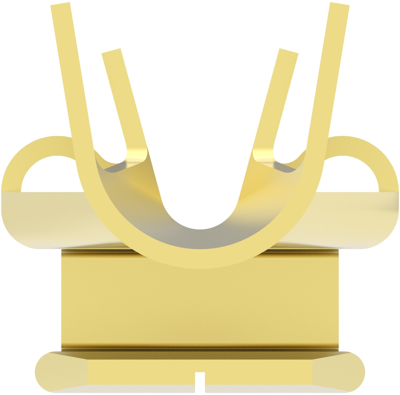

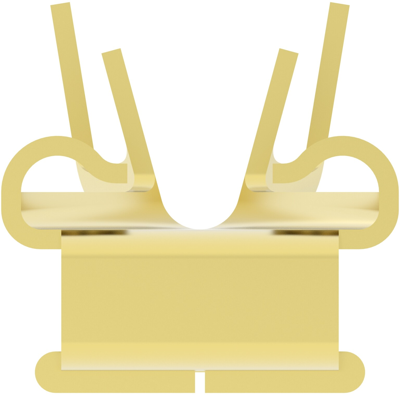

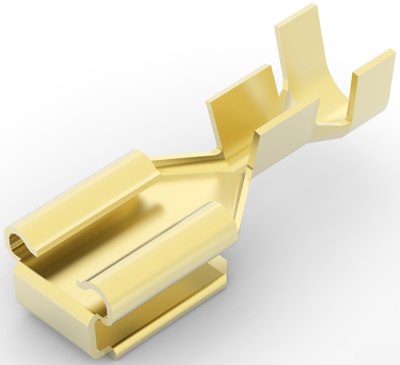

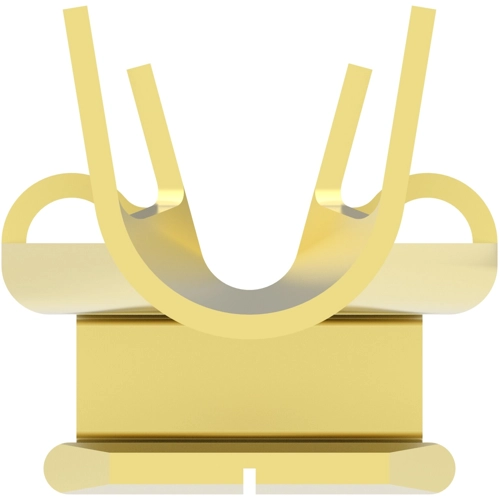

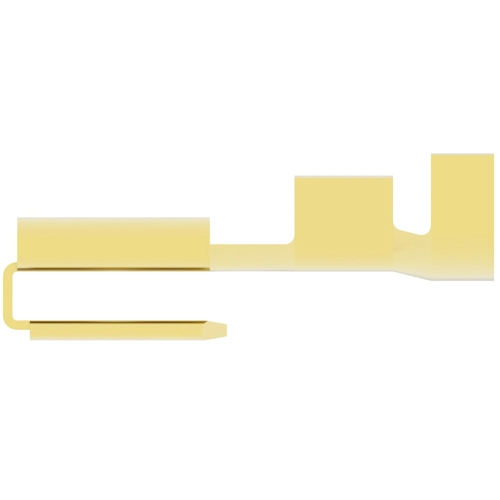

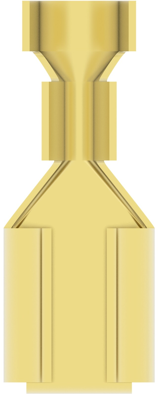

62223-1 AMP Receptacles Image 1
62223-1 AMP Receptacles Image 2
62223-1 AMP Receptacles Image 3
62223-1 AMP Receptacles Image 4
62223-1 AMP Receptacles Image 5
Image may differ
Unit Price (€ / pc.)
0.2380 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
23.80 € *
Price list
Quantity
Price per unit*
100 pcs.
0.2380 €
250 pcs.
0.2202 €
500 pcs.
0.2035 €
1000 pcs.
0.1845 €
*incl. VAT plus shipping costs
Subject to prior sale

Flat receptacle, 62223-1, TE Connectivity

Terminates To: Wire & Cable, Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Unplated, Terminal Type: Tab & Receptacle, Terminal & Splice Type: Tab & Receptacle, Terminal Orientation: Piggyback, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: With, Receptacle Terminal Stock Thickness: 0.4 mm, Wire Size: 18 – 14 AWG, Wire Size: 0.82 – 2.08 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Operating Temperature Range: -40 – 110 °C, UL Rating: Listed, Packaging Quantity: 2500, Packaging Method: Strip/Reel, Comment: Stress Relieved.,Tab Thickness: 0.81 .032

Technical specifications
Filter Property Value
Suitable for 6.35 x 0.81 mm
Material brass
AWG cross-section AWG 18 to 14
Version flat plug sleeve
Isolated No
Cable cross-section 0.82 to 2.08 mm²
Length 19.58 mm
Connection crimp connection
Logistics
Property Value
Country of origin US
Customs tariff number 85369095
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
