62080-1 | AMP

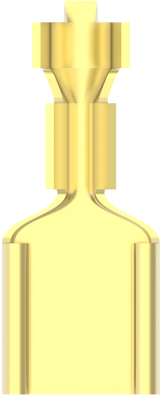

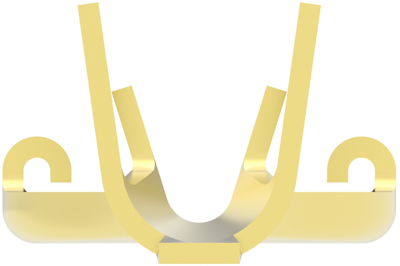

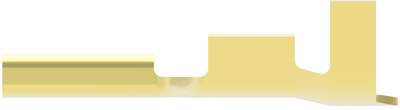

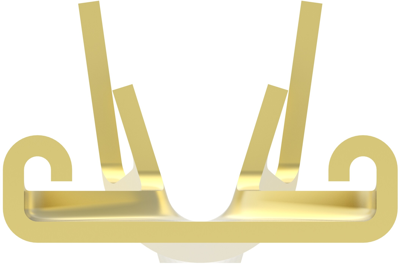

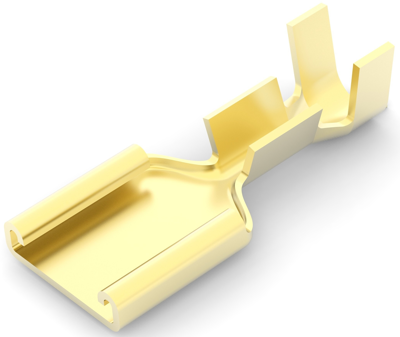

Uninsulated flat plug sleeve, 6.35 x 0.51 mm, 0.51 to 1.31 mm², AWG 20 to 16, brass, 62080-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0928 € *
Standard delivery time from the manufacturer is: 28 Weeks
Quick disconnect, 62080-1, AMP
Terminates To: Wire & Cable, Quick Disconnect Insertion Force: Low, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.4 mm, Wire Size: 20 – 16 AWG, Wire Size: 0.51 – 1.31 mm², Wire Size: 1000 – 3000 CMA, Quick Disconnect Mating Tab Width: 6.35 mm, Insulation Requirement: Uninsulated, UL Rating: Listed, Packaging Quantity: 12500, Quick Disconnect Packaging Method: Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.51 mm | |
| Material | brass | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.51 to 1.31 mm² | |
| AWG cross-section | AWG 20 to 16 | |
| Length | 17.53 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
