62069-1 | AMP
Uninsulated flat plug sleeve, 6.35 x 0.81 mm, 0.26 to 0.65 mm², AWG 26 to 19, brass, 62069-1
Order No.: 34P6371
EAN: 4099889619119
MPN:
62069-1
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
0.0845 € *
Standard delivery time from the manufacturer is: 18 Weeks

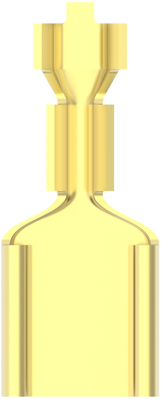

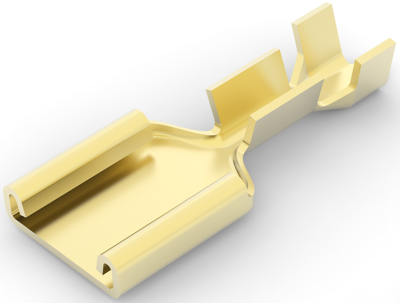

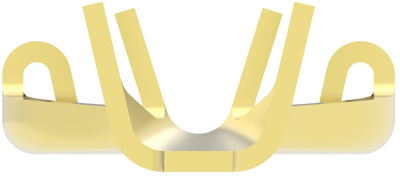

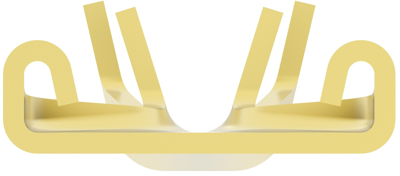

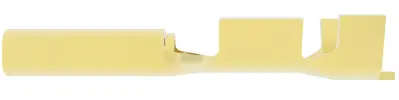

Flat receptacle, 62069-1, TE Connectivity
Terminates To: Wire & Cable, Insertion Force: Low, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Plating Material: Unplated, Terminal Type: Receptacle, Terminal & Splice Type: Receptacle, Terminal Orientation: Straight, Contact Base Material: Brass, Crimp Type: F-Crimp, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.4 mm, Wire Size: 23 – 19 AWG, Wire Size: 0.26 -0.65 mm², Mating Tab Width: 6.35 mm, Mating Tab Thickness: 0.81 mm, Packaging Quantity: 12500, Packaging Method: Reel
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | flat plug sleeve | |
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass | |
| Isolated | No | |
| Connection | crimp connection | |
| Cable cross-section | 0.26 to 0.65 mm² | |
| AWG cross-section | AWG 26 to 19 | |
| Length | 17.53 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
