Unit Price (€ / pc.)
0.4879 € *
Available in 5 Days: 14,121 pcs. - if ordered today
Total Price:
2.44 € *
Price list
Quantity
Price per unit*
5 pcs.
0.4879 €
10 pcs.
0.4522 €
25 pcs.
0.4284 €
50 pcs.
0.3808 €
*incl. VAT plus shipping costs
Subject to prior sale

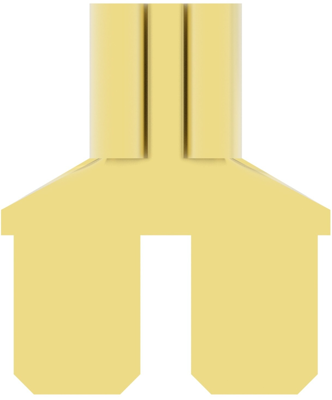

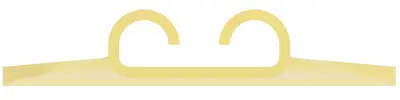

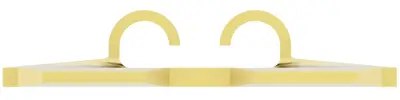

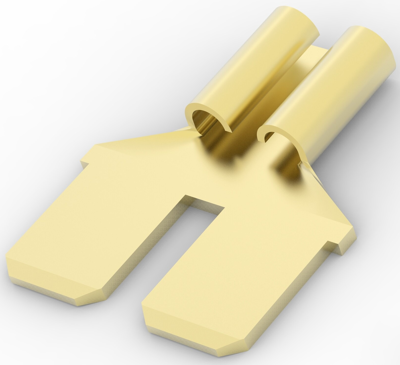

Quick disconnect, 61765-1, AMP
Wire Stop: No, Quick Disconnect Insertion Force: Normal, Sealable: No, Insulated: No, Connection Capacity: Single, Fully Insulated: No, Quick Disconnect Plating Material: Unplated, Terminal Type: Tab & Receptacle, Terminal & Splice Type: Tab & Receptacle, Quick Disconnect Terminal Orientation: Straight, Contact Base Material: Brass, Wire Insulation Support: Without, Receptacle Terminal Stock Thickness: 0.81 mm, Quick Disconnect Mating Tab Width: 6.35 mm, Quick Disconnect Mating Tab Thickness: 0.81 mm, Insulation Requirement: Uninsulated, Operating Temperature Range: -40 – 110 °C, UL Rating: Recognized, Packaging Quantity: 1000, Quick Disconnect Packaging Method: Loose Piece/Carton, Comment: Dual thickness.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 19.56 mm | |
| Isolated | No | |
| Suitable for | 6.35 x 0.81 mm | |
| Material | brass | |
| Version | flat plug sleeve |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
